Tube Micrometers series 395, 295, 115.
Spherical and Cylindrical Anvil.
Features:
The tube micrometers have two combination of measuring faces (carbide tipped): spherical-flat type, and spherical-spherical type.
Designed to measure the wall thickness of various tubing.
The 295 series is provided with a digit counter.
Provided with a standard except for 25 mm (1") model.
With Ratchet sop for constant force.
Cylindrical anvils (perpendicular) are also available.

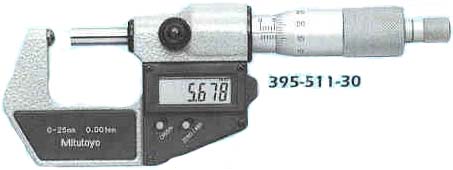

Digimatic Tube Micrometers
Metric
| Range | Order No. | Resolution | Accuracy | Mini. ID of tubing |
| 0 -25 mm | 395-511-30 | 0.001 mm | ± 2µm | d:15 mm |
| 395-541-30* | 0.001 mm | ± 2µm | d:15 mm | |
| 25 - 50 mm | 395-512-30 | 0.001 mm | ± 2µm | d:15 mm |
| 395-542-30* | 0.001 mm | ± 2µm | d:15 mm |
Inch/ Metric
| Range | Order No. | Resolution | Accuracy | Mini. ID of tubing |
| 0 - 1" | 395-711-30 | .00005"/0.001 mm | ± .0001" | d: 59" |
| 395-741-30 | .00005"/0.001 mm | ± .0001" | d: 59" |
Digit Tube Micrometers
Metric
| Range | Order No. | Graduation | Accuracy | Mini. ID of tubing |
| 0 - 25 mm | 295-115 | 0.01 mm | ± 3µm | d: 10 mm |
| 295-215 | 0.01 mm | ± 3µm | d: 10 mm |
Tube Micrometers
Metric
| Range | Order No. | Graduation | Accuracy | Mini. ID of tubing |
| 0 - 25 mm | 115-115 | 0.01 mm | ± 3µm | d: 10 mm |
| 115-215 | 0.01 mm | ± 3µm | d: 10 mm | |
| 25 - 50 | 115-116 | 0.01 mm | ± 3µm | d: 11 mm |
| 115-216 | 0.01 mm | ± 3µm | d: 11 mm |
Inch
| Range | Order No. | Graduation | Accuracy | Mini. ID of tubing |
| 0 - 1" | 115-153 | .0001" | ± .00015" | d: 40" |
| 115-253 | .0001" | ± .00015" | d: 40" |
Tube Micrometers,
Cylindrical Anvil (Perpendicular) Type
Metric
| Range | Order No. | Graduation | Accuracy | Remarks |
| 0 - 25 mm | 115-302 | 0.01 mm | ± 3µm | Type A |
| 115-308 | 0.01 mm | ± 3µm | Type B | |
| 115-315 | 0.01 mm | ± 3µm | Type C |
Inch
| Range | Order No. | Graduation | Accuracy | Remarks |
| 0 - 1" | 115-305 | .001" | ± .00015" | Type A |
