Point Micrometers series 342, 142, 112.
Features:
15 degree and 30 degree measuring points are available.
With Ratchet stop for constant force.
The measuring points (carbide-tipped) have approximately 0.3 mm (.012") radius.
The 142 series is provided with a digit counter.
Provided with a standard except for 25 mm (1") models.
Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to reach dimensions.
The 342 series (LCD readout type) is provided with SPC output.

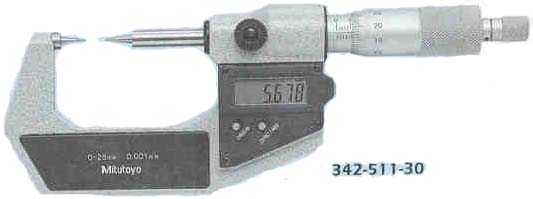

Digimatic Point Micrometers
Metric
| Range | Order No. | Resolution | Accuracy | Point |
| 0 -25 mm | 342-511-30 | 0.001 mm | ± 2µm | 15° |
| 342-541-30 | 0.001 mm | ± 2µm | 30° |
Metric
| Range | Order No. | Graduation | Accuracy | Mini. ID of tubing |
| 0 - 25 mm | 112-201* | 0.01 mm | ± 3µm | 30° |
| 25 - 50 mm | 112-202* | 0.01 mm | ± 2µm | 30° |
