Mitutoyo make out side micrometers

Measuring Instruments>>Mitutoyo>>Micrometers>>

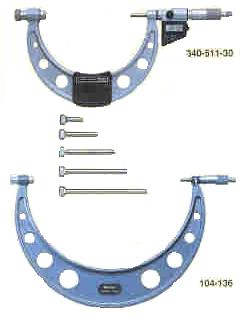

Outside Micrometers Series 340, 104.

With Interchangeable Anvils

Features:

Provided with a Ratchet Stop for constant force.

Carbide-tipped spindle face.

Supplied with zero-setting standards for each range.

Wide measuring range with interchangeable anvils.

The 340 series (LCD readout type) is provided with SPC output.

Digimatic Micrometers

outside micrometers_sr340,104

Metric

Range	Order No.	Resolution	Interchangeable anvils
0 - 150 mm	340-511-30	0.001 mm	0, 25, 50, 75, 100, 125 mm
150 - 300 mm	340-512-30	0.001mm	0, 25, 50, 75, 100, 125 mm
300 - 400 mm	340-513	0.001 mm	0, 25, 50, 75 mm
400 - 500 mm	340-514	0.001 mm	0, 25, 50, 75 mm

Inch

Range	Order No.	Resolution	Interchangeable anvils
0 - 6"	340-711-30	.00005"/0.001 mm	0, 1", 2", 3", 4", 5"
6" - 12"	340-712-30	.0001"/0.001 mm	0, 1", 2", 3", 4", 5"

Metric

Range	Order No.	Graduation	Interchangeable anvils
900-1000 mm	104-148A	0.01 mm	0, 25, 50, 75 mm

Mitutoyo Micrometer

Mitutoyo Measuring Instruments

Authorized distributors / dealers for "Aku" brand Micrometers, Disk Micrometer in India.
