Disk Micrometers series 323, 223, 123.
Features:
0.7 mm edge thickness to enter narrow recesses.
The disk micrometer is design to easily measure root tangent length of spur gears and herical gears.
Diameters of measuring disk: 20 mm (.79").
Provided with a standard except for 25 mm (1") model.
The 323 series (LCD readout type) is provided with SPC output.
The 223 series is providing with a mechanical digit counter for quick reading of measurements.
With Ratchet stop for constant force.

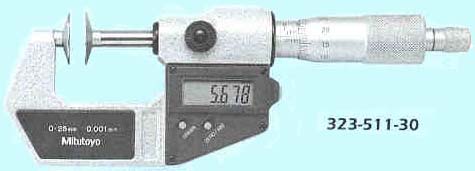

Digimatic Disk Micrometers
Metric
| Range | Order No. | Resolution | Accuracy |
| 0 - 25 mm | 323-511-30 | 0.001 mm | ±4µm |
| 25 - 50 mm | 323-512-30 | 0.001 mm | ±4µm |
Inch
| Range | Order No. | Resolution | Accuracy |
| 0 - 1" | 323-711-30 | .00005"/0.001 mm | ±4µm |
Disk Micrometers
| Range | Order No. | Resolution | Accuracy |
| 0 - 25 mm | 123-101 | 0.01 mm | ±4µm |
| 123-113* | 0.01 mm | ±4µm | |
| 25 - 50 mm | 123-102 | 0.01 mm | ±4µm |
| 123-114* | 0.01 mm | ±4µm | |
| 50 - 75 mm | 123-103 | 0.01 mm | ±6µm |
| 123-115* | 0.01 mm | ±6µm | |
| 75 - 100 mm | 123-104 | 0.01 mm | ±6µm |
| 123-116* | 0.01 mm | ±6µm | |
| 100 - 125 mm | 123-105 | 0.01 mm | ±7µm |
| 125 - 150 mm | 123-106 | 0.01 mm | ±7µm |
| 150 - 175 mm | 123-107 | 0.01 mm | ±8µm |
| 175 - 200 mm | 123-108 | 0.01 mm | ±8µm |
