Blade Micrometers series 422, 122.
Non-Rotating Spindle Type.
Features:
The anvil and the spindle have a blade for measuring the groove diameters of shafts, keyways, and other hard-to-reach portions.
With Ratchet stop for constant force.
The 222 series is provided with a digit counter.
Providing with a standard except for 25 mm (1") model.
Digimatic Blade Micrometers
Metric
| Range | Order No. | Resolution | Accuracy | Remarks |

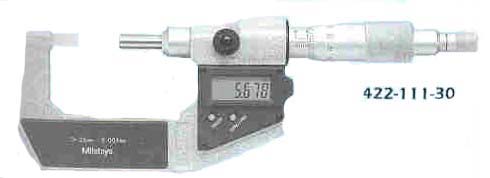

| 0 - 25 mm | 422-111-30 | 0.001 mm | ±3µm | Type A |
| 422-141-30 | 0.001 mm | ±3µm | Type B |
Metric
| Range | Order No. | Resolution | Accuracy | Remarks |

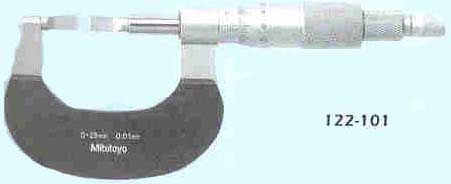

| 0 - 25 mm | 122-101 | 0.01 mm | ±3µm | Type A |
| 122-111 | 0.01 mm | ±3µm | Type B | |
| 122-141 | 0.01 mm | ±3µm | Type C | |
| 25 - 50 mm | 122-102 | 0.01 mm | ±3µm | Type A |
| 50 - 75 mm | 122-103 | 0.01 mm | ±3µm | Type A |
| 75 - 100 mm | 122-104 | 0.01 mm | ±4µm | Type A |
