V- Anvil Micrometers series 314, 114.
3 Flutes and 5 Flutes.
Features:
Carbide-tipped spindle.
Measure the outside diameter of cutting head (Such as taps, reamers, end mills) with an odd number of flutes.
V-anvils with a centerline groove are available. They are useful for measuring pitch diameter of taps which have a small diameter by using single-wire method.
Supplied with a standard for zero point adjustments.
With Ratchet stop for constant force.
The 314 series (LCD readout type) is provided with SPC output.
V-Anvil Micrometers (3 Flutes)
Metric
| Range | Order No. | Graduation | Accuracy | Remarks |
| 0 - 15 mm | 114-101 | 0.01 mm | ± 4µm | w/ Groove |
| 114-161 | 0.01 mm | ± 4µm | - | |

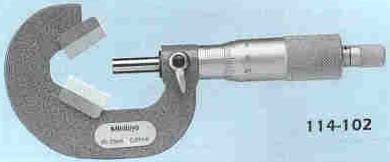

| 10 - 25 mm | 114-102 | 0.01 mm | ± 4µm | w/ Groove |
| 114-162 | 0.01 mm | ± 4µm | - | |
| 2.3 - 25 mm | 114-204* | 0.01 mm | ± 4µm | - |
| 25 - 40 mm | 114-103 | 0.01 mm | ± 5µm | - |
| 40 - 55 mm | 114-104 | 0.01 mm | ±6µm | - |
| 55 - 70 mm | 114-105 | 0.01 mm | ± 6µm | - |
| 70 - 85 mm | 114-106 | 0.01 mm | ± 7µm | - |
| 85 - 100 mm | 114-107 | 0.01 mm | ± 7µm | - |
V-Anvil Micrometers (5 Flutes)
Metric
| Range | Order No. | Graduation | Accuracy | Remarks |

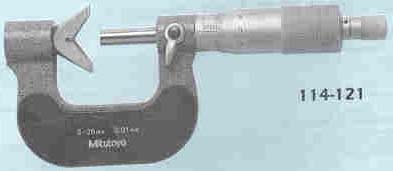

| 5 - 25 mm | 114-121 | 0.01 mm | ± 4µm | w/ Groove |
| 2.3 -25 mm | 114-137 | 0.01 mm | ± 4µm | - |
