Measuring Instruments>>Mitutoyo>>Calipers>>
Offset Centerline Calipers
Features:
Offset Centerline Calipers specially designed for center to center distance measurements on the same and offset planes.
Hole diameter should be larger than 1.5mm (.06") but smaller than 10mm (.4").
Can also measure from edge to center.
Without Depth Bar.

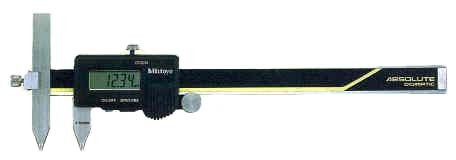

Offset Centerline ABS Digimatic Calipers
| Range | Code No. | Resolution | Accuracy |
| .4-6"/150mm | 573-205-10 | .0005"/0.01mm | ± 0015" |
| .4-8"/200mm | 573-206-10 | .0005'/0.01mm | ± 0015" |
Offset Centerline Vernier Calipers
| Range | Code No. | Vernier | Accuracy |
| 10-150mm | 536-105 | 0.05mm | ± 0.05mm |
| 10-200mm | 536-106 | 0.05mm | ± 0.05mm |
