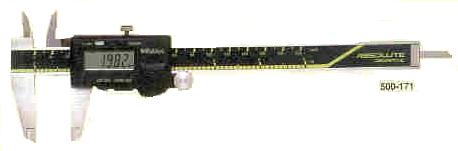

ABS Digimatic Calipers
Mitutoyo's new ABS Digimatic Caliper "MYCAL Absolute" keeps track of its origin point once set. No more repeated zero setting is necessary with the "MYCAL Absolute" as well as no more care for the over - speed error. Whenever turned on, the large LCD screen displays the actual slider position ready to start measurement.
Features:
ABS Digimatic Calipers display zero setting at any slider position along the scale for incremental comparison measurements. This switch will also allow return to the absolute mode and display of the true position from the origin point.
It have large and clear LCD screen.
Optional add-on DATA /HOLD Unit is available.
Single SR44 battery operation with approx. 3.5 years battery life under normal working conditions.
| Range | Code No. | Resolution | Accuracy | Repeatability | Remark |
| 0-4''/100mm | 500-170 | .0005"/0.01mm | ± 001" | .0005" | with Depth bar, with SPC output. |
| 0-6"/150mm | 500-171 | .0005"/0.01mm | ± 001" | .0005" | with Depth bar, with SPC output. |
| 0-6"/150mm | 500-196 | .0005"/0.01mm | ± 001" | .0005" | with Depth bar, without SPC output. |
| 0-8"/120mm | 500-172 | .0005"/0.01mm | ± 001" | .0005" | with Depth bar, with SPC output. |
| 0-8"/120mm | 500-197 | .0005"/0.01mm | ± 001" | .0005" | with Depth bar, without SPC output. |
| 0-12"/300mm | 500-173 | .0005"/0.01mm | ± 0015" | .0005" | with Depth bar, with SPC output. |
| 0-12"/300mm | 500-193 | .0005"/0.01mm | ± 0015" | .0005" | with Depth bar, without SPC output. |
