Magnetic Stands
Mitutoyo's Magnetic Stands accept all dial indicators and dial test indicators. The ON-OFF switch offers instant mounting and dismounting without any adverse effect to the indicators or work surface.

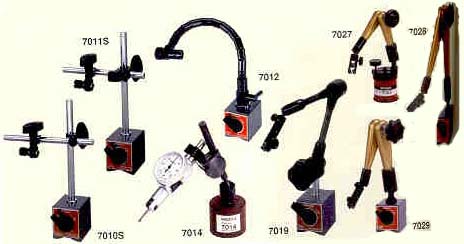

| Code No. | Description | Clamping Stem Diameter | Dovetail clamp | Pull | Remarks |
| 7010S | Magnetic Stand | 4.5 mm, .375" (8 mm) | ---- | 600N (60kgf) | --- |
| 7011S | Magnetic Stand | 4.5 mm, .375" (8 mm) | ---- | 600N (60kgf) | with Adjustable rod |
| 7012 | Magnetic Flexi- Stand | 6 mm, .375" | --- | 600N (60kgf) | --- |
| 7014 | Mini-Magnetic Stand | 6 mm, 8 mm | Available | 150N (15kgf) | without ON-OFF switch |
| 7019 | Universal Magnetic Stand | .375" (8 mm) | Available | 600N (60kgf) | with Hydraulic position lock |
| 7027 | Universal Magnetic Stand | 8 mm | Available | 600N (60kgf) | with Hydraulic position lock |
| 7028 | Universal Magnetic Stand | 8 mm | Available | 600N (60kgf) | with Hydraulic position lock |
| 7029 | Universal Magnetic Stand | 8 mm | Available | 600N (60kgf) | with Hydraulic position lock |
Mitutoyo Measuring Instruments
Authorized distributors / dealers for "Aku" brand stands, transfer stands, dial gauges stands magnetic stands, comparator stands in India.
