Mitutoyo >> Miscellaneous >>Universal bevel protractor

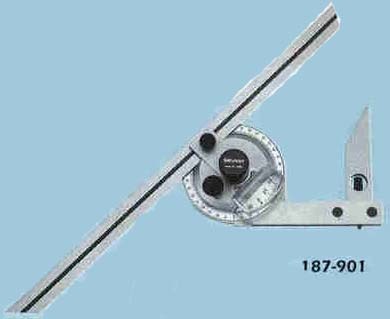

Universal Bevel Protractor Series 187.
Features:
Can be attached to the height gauge.
High-precision angle gage for accurate angle measurement of machines, molds, and jigs.
Metric:
| Blade Length | Order No. | Graduation | Remarks |
| 150, 300 mm | 187-901 | 5 min (0°-90°-0°) | w/60°, 45°, 30° edges |
| 150 mm | 187-907 | 5 min (0°-90°-0°) | w/60°, 45° edges |
| 300 mm | 187-908 | 5 min (0°-90° -0°) | w/60°, 45° edges |
Inch:
| Blade Length | Order No. | Graduation | Remarks |
| 6", 12" | 187-902 | 5 min. (0°-90°-0°) | w/60°, 45°, 30° edges |
| 6" | 187-904 | 5 min. (0°-90°-0°) | w/60°, 45° edges |
| 12" | 187-906 | 5 min. (0°-90° -0°) | w/60°, 45° edges |
Mitutoyo Measuring Instruments
Authorized distributors / dealers for "Aku" brand Miscellaneous that including universal bevel protractor bevel protractor Digimatic bevel protractor in India.
