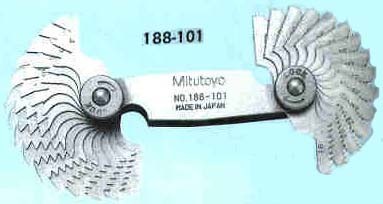

Pitch Gages Series 188.
Features:
Metric, Unified, and Whitworth screw pitch gages.
Thread pitch size is stamped on each gage.
Metric Screw Pitch Gages
| Range | Order No. | Composition of gages |
| 0.35 - 6 mm (21 leaves) | 188 - 130 | 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.8,1 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6 mm and 60° angle gage |
| 0.4 - 7 mm (21 leaves) | 188 - 122 | 0.4, 0.5, 0.7,0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7 mm |
| 0.4 - 7 mm (18 leaves) | 188 - 121 | 0.4, 0.5, 0.75, 1, 1.25, 1.5, 1.75, 2 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7 mm |
Unified Screw Pitch Gages
| Range | Order No. | Composition of gages |
| 4-42 TPI (30 leaves) | 188 - 111 | 4, 4 1/2, 5, 5 1/2, 6, 7, 8, 9, 10, 11, 11 1/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42TPI |
Whitworth Screw Pitch Gages
| Range | Order No. | Composition of gages |
| 4 - 42 TPI (30 leaves) | 188 - 101 | 4, 4 1/2, 5, 51/2, 6, 7, 8, 9, 10, 11, 11 1/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42 TPI |
| 4 - 60 TPI (28 leaves) | 188 - 102 | 4, 4 1/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 34, 36, 40, 48, 60 TPI |
