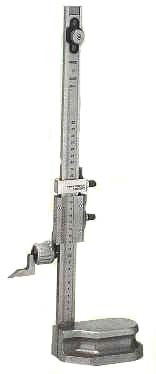

Vernier Height Gages Series 514
Features:
Satin chrome finished scales for glare-free reading.
Zero reference point can be adjusted.
Extra large base for rigidity.
Final vernier readings can be assisted by the dedicated magnifier (optional).
Provided with carbide-tipped scriber.
| Range | Order No. | Vernier reading | Accuracy | Adjustable Range | Remarks | ||
| Left Scale | Right Scale | Left Scale | Right Scale | ||||
| 0-12" | 0-300 mm | 514-103 | .001" | 0.02 mm | ± .002" | .59" | with Scriber (07GZA000) |
| 0-18" | 0-450 mm | 514-105 | .001" | 0.02 mm | ± .002" | .59" | with Scriber (07GZA000) |
| 0-24" | 0-600 mm | 514-107 | .001" | 0.02 mm | ± .002" | .59" | with Scriber (07GZA000) |
| 0-40" | 0-1000mm | 514-109 | .001" | 0.02 mm | ± .003" | .98" | with Scriber (905200) |
