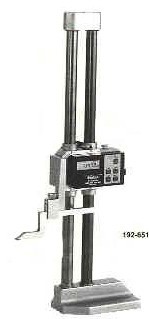

Heavy Duty Digimatic Height Gages Series 192
Features:
Multi-function display provides Zero-setting, Origin setting, Presetting, Data hold, Data output, Over-speed alarm, and Low battery alarm capabilities.
Carbide-tipped, long scriber (150 mm).
Rigid construction ensures repeatable height measurements.
The Two-directional Touch-Signal Probe (optional) allows quick and accurate measurements of steps, inside width, and outside width.
Power Supply : Three LR6 batteries.
| Range | Order No. | Resolution | Accuracy | Remarks |
| 0-12"/300mm | 192-670 | .0005"/0.01mm | ± .001" | with Scriber (905201) |
| 192-670 | .0005"/0.01mm | ± .001" | with Scriber (905201) | |
| 0-18"/450mm | 192-671 | .0005"/0.01mm | ± .0015" | with Scriber (905201) |
| 192-671 | .0005"/0.01mm | ± .0015" | with Scriber (905201) | |
| 0-24"/600mm | 192-672 | .0005"/0.01mm | ± .002" | with Scriber (905385) |
| 192-672 | .0005"/0.01mm | ± .002" | with Scriber (905385) | |
| 0-40"/1000mm | 192-673 | .0005"/0.01mm | ± .0025" | with Scriber (905385) |
| 192-673 | .0005"/0.01mm | ± .0025" | with Scriber (905385) |
