Measuring Instruments>>Mitutoyo>>Height Gages>>

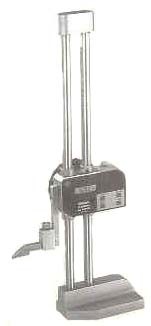

Digimatic Height Gages Series 192
Features:
Double column structure ensures high measuring stability.
Easy to use design.
Functions include: Zero setting, Data hold, Presetting, Inch/mm conversion (Inch/Metric model only), Coarse/Fine Feed switching, over-speed alarm, Low battery alarm.
Carbide-tipped scriber.
Power supply : Three LR6 batteries.
| Range | Order No. | Resolution | Accuracy | Remarks |
| 0-12"/300mm | 192-630 | .0005"/0.01mm | ± .001" | with Scriber (900258) |
| 192-630 | .0005"/0.01mm | ± .001" | with Scriber (900258) | |
| 0-18"/450mm | 192-631 | .0005"/0.01mm | ± .002" | with Scriber (900258) |
| 0-24"/600mm | 192-632 | .0005"/0.01mm | ± .002" | with Scriber (900385) |
| 192-632 | .0005"/0.01mm | ± .002" | with Scriber (900385) | |
| 0-40"/1000mm | 192-633 | .0005"/0.01mm | ± .003" | with Scriber (900385) |
| 192-633 | .0005"/0.01mm | ± .003" | with Scriber (900385) |
