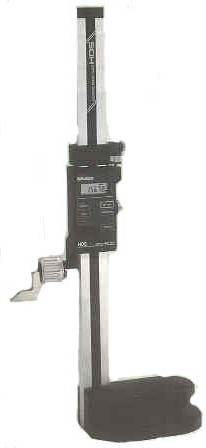

Digimatic Height Gages Series 570
Features:
Digimatic Height gage can easily measure the height of small parts.
The robust construction with a thick column provides highly repeatable measurements.
The clear LCD screen provides digital readout to 0.01mm for error-free reading.
Fine-adjustment carriage to feed the slider finely.
Functions include: Zero-setting, presetting, Data hold, Data output, -/+ switching, inch/mm conversion (Inch/Metric model only), Error alarm, Low battery alarm.
Carbide-tipped scriber.
Power supply: One SR44 battery.
| Range | Order No. | Resolution | Accuracy | Repeatability | Remarks |
| 0-12"/300mm | 570-245 | .0005"/0.01mm | ± .002" | .0005" | with Scriber (900258) |
| 0-18"/450mm | 570-246 | .0005"/0.01mm | ± .002" | .0005" | with Scriber (900258) |
| 0-24"/600mm | 570-247 | .0005"/0.01mm | ± .002" | .0005" | with Scriber (900258) |
| 0-40"/100mm | 570-248 | .0005"/0.01mm | ± .003" | .0005" | with Scriber (905201) |
