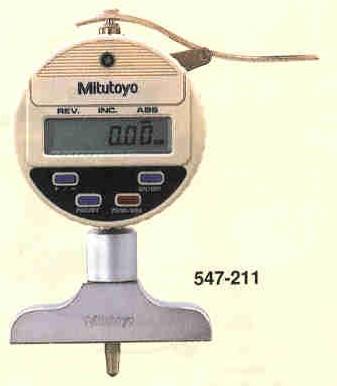

Digimatic Depth Gages
Features:
With the supplied extension rods, depths of up to 200 mm can be measured.
Uses IDC Digimatic Indicator. This offers may special functions including Presetting and SPC data output.
Power Supply: Two SR44 batteries offer 1800 hours continuous use.
| Range | Code No. | Digimatic Indicator | Foot Size | |
| Resolution | Range | |||
| 0-200mm | 547-211 | 0.01 mm | 12 mm | 63 x 16 mm |
| 0-200mm | 547-212 | 0.01 mm | 12 mm | 101 x 16 mm |
| 0-8"/200 mm | 547-217 | .0005"/0.01 mm | .5" | 2.5 x .63" |
| 0-8"/200 mm | 547-218 | .0005"/0.01 mm | .5" | 4 x .63" |
