Dial Thickness Gages

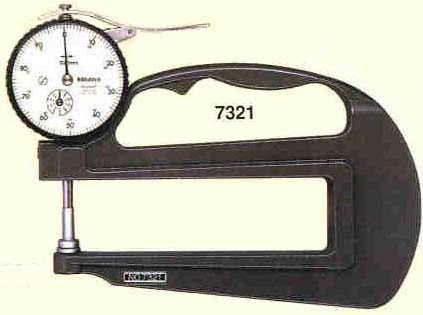

dial thickness gage_7301   dial thickness gage_7321

The Dial Thickness Gages offer a quick and efficient means of inspection with their convenient grip handle, thumb trigger and spring-loaded spindle. The various models cover a wide range of applications. The Light-Weight Type Dial Thickness Gage is also available with 10 mm dia. ceramic measuring faces.

                       Metric:

Range Code No. Graduation Accuracy Remarks
0-10 mm 7301 0.01 mm 0.015 mm Type A
0-10 mm 7321 0.01 mm 0.015 mm Type B
0-10 mm 7313 0.01 mm 0.015 mm Type C
0-10 mm 7315 0.01 mm 0.015 mm Type D
0-10 mm 7360 0.01 mm 0.015 mm Type E
0-20 mm 7305 0.01 mm 0.025 mm Type A
0-20 mm 7323 0.01 mm 0.025 mm Type B
