Mitutoyo make Dial depth gauges

Measuring Instruments>>Mitutoyo>>Dial Gauges>>

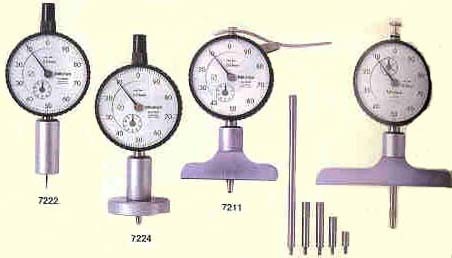

Dial Depth Gages

dial depth gages

Features:

The contact point is mead of alloyed steel.
Wide measuring depth is available with the supplied extension rods (except 7210, 7222, 7223, 7224).
Bottom surface of the foot is hardened, ground and lapped for highest degree of flatness.
Spindle lifting lever for raising, lowering and spindle is maintained under spring pressure.

Range	Code No.	Dial Indicator		Foot Size	Remarks
Range	Code No.	Graduation	Range	Foot Size	Remarks
0-10mm	7222	0.01 mm	10 mm	16 mm dia	Needle type point
0-10mm	7210	0.01 mm	10 mm	40 x 16 mm	Needle type point
0-10mm	7223	0.01 mm	10 mm	25 mm dia	----
0-10mm	7224	0.01 mm	10 mm	40 mm dia	----
0-200 mm	7211	0.01 mm	10 mm	63.5 x 16 mm	----
0-200 mm	7212	0.01 mm	10 mm	101.6 x 16 mm	----
0-200 mm	7220	0.01 mm	10 mm	100 x 18 mm	2 mounts for indicator
0-200 mm	7221	0.01 mm	10 mm	150 x 18 mm	3 mounts for indicator
0-210 mm	7213	0.01 mm	30 mm	63.5 x 16 mm	----
0-210 mm	7214	0.01 mm	30 mm	101.6 x 16 mm	----
0-8"	7217	.001"	1"	2.5 x .63"	----
0-8"	7218	.001"	1"	4 x .63"	----
