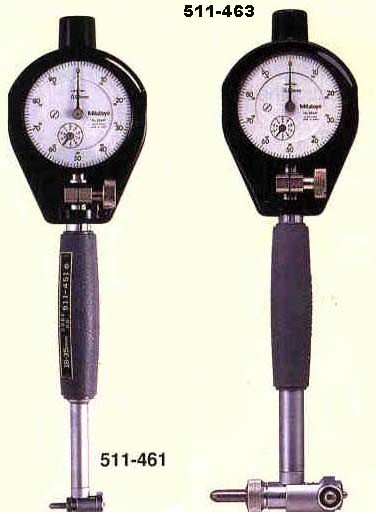

Bore Gages Short Leg Type
Features:
Carbide-tipped contact point for durability.
Optional Setting Rings offer the best method of zero-setting Bore Gages.
Compact and lightweight because of the short length below the grip.
Metric:
| Range | Code No. | Indicator provided, Graduation | Probe Depth |
| 18-35mm | 511-471 | 2109 FB, 0.001 mm | 50 mm |
| 18-35 mm | 511-461 | 2046 FEB, 0.01 mm | 50 mm |
| 35-60 mm | 511-472 | 2109 FB, 0.001 mm | 50 mm |
| 35-60 mm | 511-462 | 2046 FEB, 0.01 mm | 50 mm |
| 50-100 mm | 511-473 | 2109 FB, 0.001 mm | 50 mm |
| 50-100 mm | 511-463 | 2046 FEB, 0.01 mm | 50 mm |
| 50-150 mm | 511-474 | 2109 FB, 0.001 mm | 50 mm |
| 50-150 mm | 511-464 | 2046 FEB, 0.01 mm | 50 mm |
| 100-160 mm | 511-475 | 2109 FB, 0.001 mm | 50 mm |
| 100-160 mm | 511-465 | 2046 FEB, 0.01 mm | 50 mm |
