Bore Gages Individual
Mitutoyo offers a complete selection of Bore Gages, all of them with interchangeable anvils and necessary accessories to perform close tolerance ID measurements. Some of large Bore Gages are equipped with a unique self-centering device which facilitates accurate measurement of the bore.
Features:
Most popular Bore Gages.
The Dial Indicator is fully protected by rugged cover.
Optional Setting Rings offer the best method of zero - setting Bore Gages.
Carbide - tipped contact points for durability.
Optional extension rods can be attached for measuring deep holes.
Economy Bore Gage sets are also available.
Metric:
| Range | Code No. | Indicator provided, Graduation | Probe Depth |
| 18-35mm | 511-167 | 2109 FB, 0.001 mm | 100 mm |
| 18-35 mm | 511-171 | 2046 FEB, 0.01 mm | 100 mm |
| 35-60 mm | 511-168 | 2109 FB, 0.001 mm | 150 mm |
| 35-60 mm | 511-172 | 2046 FEB, 0.01 mm | 150 mm |
| 50-100 mm | 511-169 | 2109 FB, 0.001 mm | 150 mm |

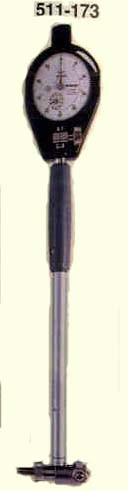

| 50-100 mm | 511-173 | 2046 FEB, 0.01 mm | 150 mm |
| 50-150 mm | 511-170 | 2109 FB, 0.001 mm | 150 mm |
| 50-150 mm | 511-174 | 2046 FEB, 0.01 mm | 150 mm |
| 100-160 mm | 511-178 | 2109 FB, 0.001 mm | 150 mm |
| 100-160 mm | 511-175 | 2046 FEB, 0.01 mm | 150 mm |
| 160-250 mm | 511-179 | 2109 FB, 0.001 mm | 250 mm |
| 160-250 mm | 511-176 | 2046 FEB, 0.01 mm | 250 mm |
| 250-400 mm | 511-180 | 2109 FB, 0.001 mm | 250 mm |
| 250-400 mm | 511-177 | 2046 FEB, 0.01 mm | 250 mm |
Inches:
| Range | Code No. | Indicator provided, Graduation | Probe Depth |
| .7 -1.4" | 511-163 | 2923 B -10, .0001" | 4" |
| .7 -1.4" | 511-159 | 2922 B - 08, .0005" | 4" |
| 1.4 - 2.5" | 511-164 | 2923 B -10, .0001" | 6" |
| 1.4 - 2.5" | 511-160 | 2922 B - 08, .0005" | 6" |
| 2-4" | 511-165 | 2923 B -10, .0001" | 6" |
| 2-4" | 511-161 | 2922 B - 08, .0005" | 6" |
| 2-6" | 511-166 | 2923 B -10, .0001" | 6" |
| 2-6" | 511-162 | 2922 B - 08, .0005" | 6" |
| 4-6.5" | 511-187 | 2923 B -10, .0001" | 6" |
| 4-6.5" | 511-184 | 2922 B - 08, .0005" | 6" |
| 6.5-10" | 511-188 | 2923 B -10, .0001" | 10" |
| 6.5-10" | 511-185 | 2922 B - 08, .0005" | 10" |
| 10-16" | 511-189 | 2923 B -10, .0001" | 10" |
| 10-16" | 511-186 | 2922 B - 08, .0005" | 10" |
