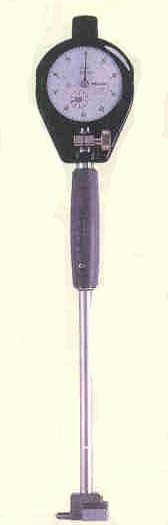

Bore Gages For Blind Holes
Features:
Optional Setting Rings offer the best method of zero-setting Bore Gages.
Can measure ID at position close to the bottom of blind holes.
Metric:
| Range | Code No. | Indicator provided, Graduation | Probe Depth |
| 15-35mm | 511-421 | 2109 FB, 0.001 mm | 150 mm |
| 15-35 mm | 511-411 | 2046 FEB, 0.01 mm | 150 mm |
| 35-60 mm | 511-422 | 2109 FB, 0.001 mm | 150 mm |
| 35-60 mm | 511-412 | 2046 FEB, 0.01 mm | 150 mm |
| 50-100 mm | 511-423 | 2109 FB, 0.001 mm | 150 mm |
| 50-100 mm | 511-413 | 2046 FEB, 0.01 mm | 150 mm |
| 50-150 mm | 511-424 | 2109 FB, 0.001 mm | 150 mm |
| 50-150 mm | 511-414 | 2046 FEB, 0.01 mm | 150 mm |
