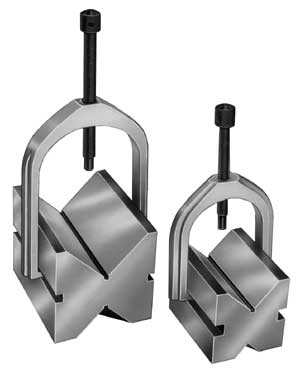

V - Block Hardened with Clamps
The V - Blocks have two V - angles of different size to take parts of varying dimensions. By means of the clamp the work can be held tight in the block. The accuracy of the vee block / 100 mm is within 0.005 mm.
V - BLOCKS CAN BE SUPPLIED WITH 120 DEGREE ANGLE.
|
CAT NO.
|
L * W * H
|
CLAMPING RANGE
|
|
SH - 444
|
50 * 40 * 40 mm
|
5 - 30 mm
|
|
SH - 445
|
75 * 60 * 60 mm
|
6 - 50 mm
|
|
SH - 446
|
100 * 80 * 80 mm
|
6 - 70 mm
|
|
SH - 447
|
70 * 140 * 140 mm
|
10 - 125 mm
|
|
SH - 448
|
150 * 200 * 200 mm
|
10 - 150 mm
|
|
SH - 450
|
200 * 200 * 200 mm
|
10 - 200 mm
|
