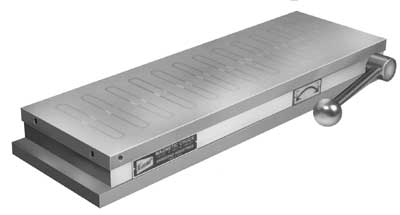

Magnetic Chucks
This permanent Magnetic Chuck guarantees outstanding performance and reliability. The rigid assembly of these chucks result in accrete grinding or milling. The carefully selected pole spacing ensures the maximum possible grip on a wide section of work pieces. All types, sizes and shapes of work pieces can be accommodated by using an additional top plate. The magnet used is "NdFeB". This magnet is very powerful than "AINiCo". Under ideal conditions the test result show s that the holding power / sq. inch is 55 kg. Which much higher than "AINiCo" magnetic chuck.
|
CAT NO.
|
SIZES IN INCHES
|
SIZES IN MM
|
MAGNETIC POLE GAP ( MM )
|
| L W H | 19 | ||
| SI - NEO - 1460 - S.P. | 14" x 6" | 356 x150 x64 | 19 |
| SI - NEO - 1860 - S.P. | 18" x 6" | 457 x150 x64 | 19 |
| SI - NEO - 1880 - S.P. | 18" x 8" | 457 x 200 x 64 | 19 |
| SI - NEO - 2080 - S.P. | 20" x 8" | 500 x 200 x 64 | 19 |
| SI - NEO - 2480- S.P. | 24" x 8" | 600 x 200 x 70 | 19 |
| SI - NEO - 2410 - S.P. | 24" x 10" | 600 x 250 x 70 | 19 |
| SI - NEO - 2412 - S.P. | 24" x 12" | 600 x 300 x 70 | 19 |
| SI - NEO - 3010- S.P. | 30" x 10" | 750 x 250 x 70 | 19 |
