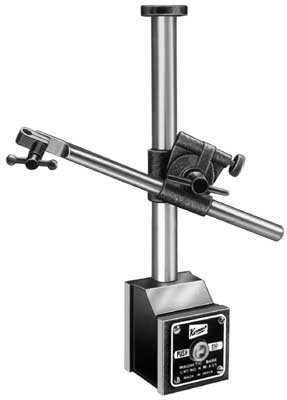

Heavy Magnetic Stands
KM - 635
This model utilizes a heavy base unit and the massive rigid fittings make it suitable for use with larger dial gauges. A fine adjustment screw is provided and maximum magnetic performance gives security even on rough surfaces. The base and two sides are energized for attachment to flat surfaces and a 'V' slot facilitates gripping on curved surfaces. Universal movement of crossbar is controlled by one screw.
| HEIGHT OF COLUMN |
230 mm
|
| DIAMETER OF COLUMN |
22 mm
|
| LENGTH OF BASE |
63 mm
|
| WIDTH OF BASE |
63 mm
|
| HEIGHT OF BASE |
75 mm
|
| MAGNETIC PULL | 90 Kg |
