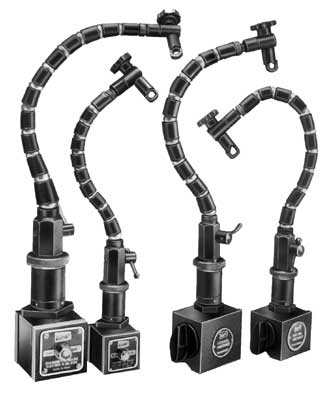

Flexible
Magnetic Stands
SRD - 101F, KM - 525F, KM - 635F, KM - 725F
Complete flexibility is obtained by short tubular sections with precision ball joints linked by a steel cable. The flexible post can be adjusted to practically any desired position and locked lever at the base of the post. This complete flexibility permits use of the indicator in awkward hard to reach position which are impossible to reach by conventional indicator holding devices. A unique Fine Adjustment is provided at the base at desired position.
Supplied in two types :
1) Push Button Model
2) ON / OFF Switch model
| Cat. No | L * W * H | Height |
| - | - | - |
| SRD-101F | 51*45*45 | 315 mm |
| KM - 525F | 60*50*50 | 350 mm |
| KM - 635F | 74*68*63 | 465 mm |
| KM - 725F | 73*50*64 | 440 mm |
