Counter bores With Morse Taper Shanks

Addison



High Speed Steel

COUNTER BORES WITH MORSE TAPER SHANKS

Specifications conform
to IS 5710- 1970

Dimensions in mm

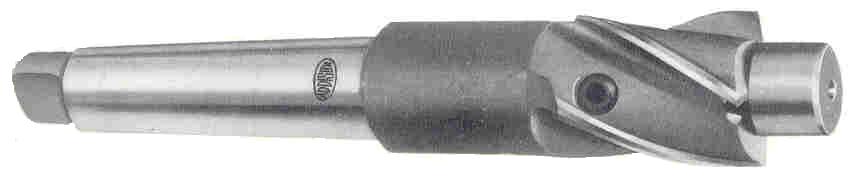

counterboreswithmorsetapershanks

Counter bores is used to square the screw head’s seating surface perpendicular to the axis of the hole, an operation known as spot facing, Counter bores are tools for cutting recessed holes in a work piece, typically on center with a smaller hole. Counter bores are frequently cut in order to allow screw head seating in the recessed hole, so that the screw head does not protrude above the material surface.



Cutting Edge Diameter z9 Cutting Edge Length Overall Length Morse Taper No. Pilot Diameter
13.5
14.5
16.5
17.5
19.5		 20
20
25
25
25		 130
130
140
140
140		 2
2
2
2
2 		5 to 14
5 to 14
6.3 to 18
6.3 to 18
6.3 to 18
20
22
23
25
26		 25
30
30
30
35		 140
150
150
150
180		 2
2
2
2
3		 6.3 to 18
8 to 22.4
8 to 22.4
8 to 22.4
10 to 28
28
29
31
33		 35
35
35
40		 180
180
180
190		 3
3
3
3		 10 to 28
10 to 28
10 to 28
12.5 to 35.5
Cutting Edge Diameter z9 Cutting Edge Length Overall Length Morse Taper no. Pilot Diameter
34
36
37
39
41		 40
40
40
40
46		 190
190
190
190
225		 3
3
3
3
4		 12.5 to 35.5
12.5 to 35.5
12.5 to 35.5
12.5 to 35.5
16 to 45
43
46
48
51
53		 46
46
46
54
54 		225
225
225
240
240		 4
4
4
4
4		 16 to 45
16 to 45
16 to 45
20 to 53
20 to 58
55
57
59
61
63		 54
54
54
54
54		 240
240
240
240
240		 4
4
4
4
4 		20 to 58
20 to 58
20 to 58
20 to 58
20 to 58

We manufacture AKU brand Morse taper shank counter bores as per customer's specifications. Looking for appointing authorized dealers, distributors in Pune, Chennai, Faridabad, Bangalore, Bhopal, Chandigarh, Coimbatore. Also, OEM inquiries welcome.
