BRITOOL

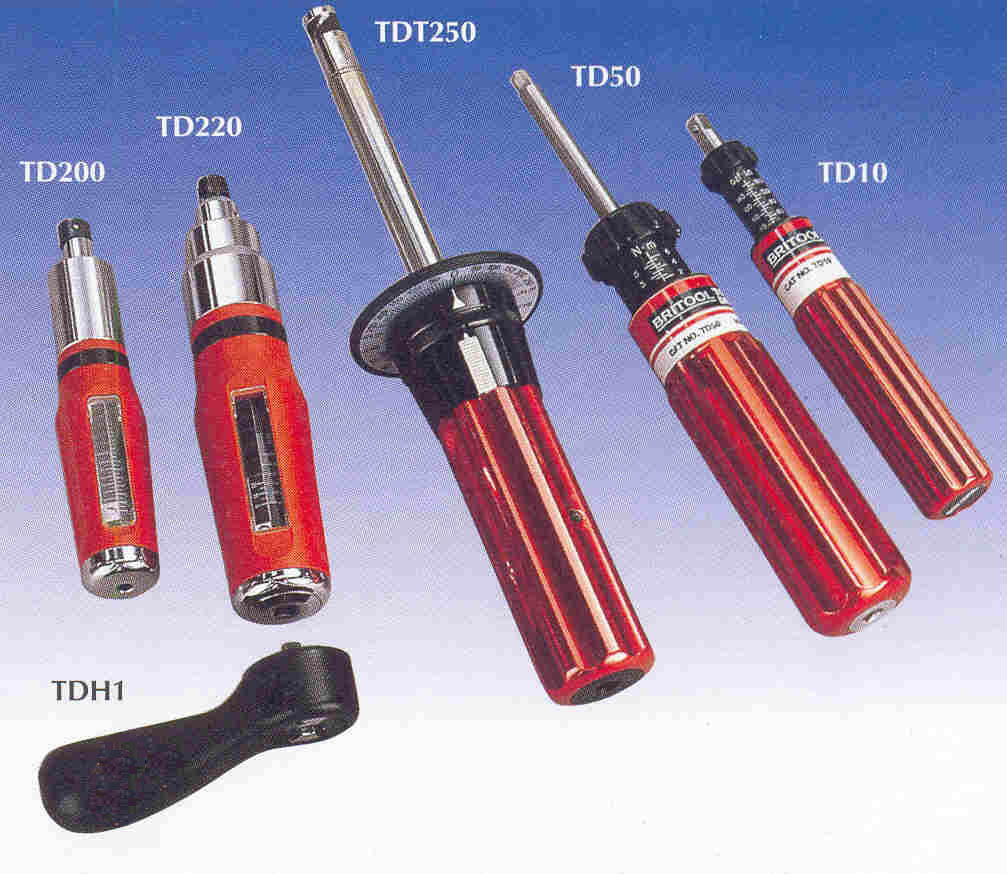

Torque Drivers
Britool torque drivers have been specially developed for use assembling, maintaining and repairing small mechanical and electrical assemblies where low torques are required.
Bi-directional operation
Accurate to ±6% of reading
Manufacturing to international torque drivers standard ISO 6789 : 1992
Torque Limiting Drivers
Release present torque-handle rotates freely when the required torque value is achieved. Prevents unintentional overtorqueing
Mechanism automatically resets, facilitating rapid repetitive operations
Ergonomic handle design for a film, positive grip, allows accurate torqueing - comfortable with prolonged use.
TD200, TD210, TD220 have parallax-free precision vernier gives exact torque readings
Handles except TD10 incorporate 1/4" female square which facilitates use of 'T' bar or ratchet handle TDH1 for more turning power
Adjustment ring on TD10 and TD50 disengages when tool is in use, to prevent accidental resetting
1/4" square drive, male
| Ref. | Torque Range | Square Drive | Length mm | Wt. Kg | ||
| in | mm | |||||
| TD10 | 20-120 N.m | 20-170 ozf.in | 1/4 | 6 | 160 | 0.16 |
| TD50 | 1-6 N.m | 10-50 lbf.in | 1/4 | 6 | 222 | 0.34 |
1/4" hex drive, female
| Ref. | Torque Range | Hex. Drive | Length | Wt. | |
| in | mm | mm | Kg | ||
| TD200 | 15-75 cN.m | 1/4 | 6 | 135 | 0.25 |
| TD210 | 0.5-2.5 N.m | 1/4 | 6 | 150 | 0.33 |
| TD220 | 1-6 N.m | 1/4 | 6 | 160 | 0.40 |
Ratchet handle
Ratchet mechanism for fast pre-tightening - comfortable grip for repetitive operations. Facilitates tightening to higher torque settings.
For use with TD50, 210, 220
| Ref. | Square Drive | Length | Wt. | |
| in | mm | mm | Kg | |
| TDH1 | 1/4 | 6 | 84 | 0.08 |
