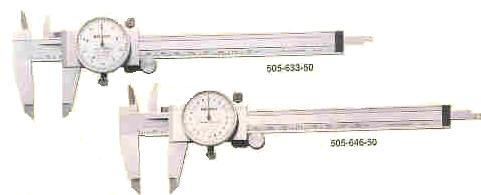

Dial Calipers 1200 Series.
This is one of he handiest measuring tools available, used by mechanics and toolmakers everywhere. It is direct reading, reliable and accurate.
No. 120 Series.
Readability Features:-
Sharp, clear dial graduations of .001" or 0.02 mm - .100" or 2 mm in one revolution.
Sharp, black graduations on the satin finished bar, every .100" or 1 mm.
Choice of black, red, or white inch dials; millimeter dials are yellow.
Ease -of-Handling Features:-
Knife-edge contacts for both inside and outside measurements.
One hand use with the thumb-operated, fine adjustment roll.
Lock screw for dial bezel.
Lock screw for holding the sliding jaw in position.
Depth rod attachment available to set the tool for accurate depth measurements on 6" (150 mm) and 9" Size. There is also a detachable depth rod available for the 12" model.
Parallel lines may be scribed on a workpiece by setting the caliper jaw to the required dimensions, locking the movable jaw with the lock screw and then using the front edge of the fixed jaw as the scribing surface.
Accuracy and Long-Life Features:-
Long-wearing carbide faces on outside contacts on models nos. 120AX-6 and 120AMX-150 only.
Hardened stainless steel bas, measuring surfaces, rack, gears and depth rod.
Positive, split-gears anti-backlash control.
Rack teeth point down to make it easy to shed foreign matter and thereby keep the area clean.
| Cat. No. | Range | Graduation |
| 1201M - 150 | 0 - 150 mm | 0.01 mm |
| 1201M - 200 | 0 - 200 mm | 0.01 mm |
| 1202M - 150 | 0 - 150 mm | 0.02 mm |
| 1202M - 200 | 0 - 200 mm | 0.02 mm |
| 1202M - 300 | 0 - 300 mm | 0.02 mm |
