TIME Precision Measuring Instrument

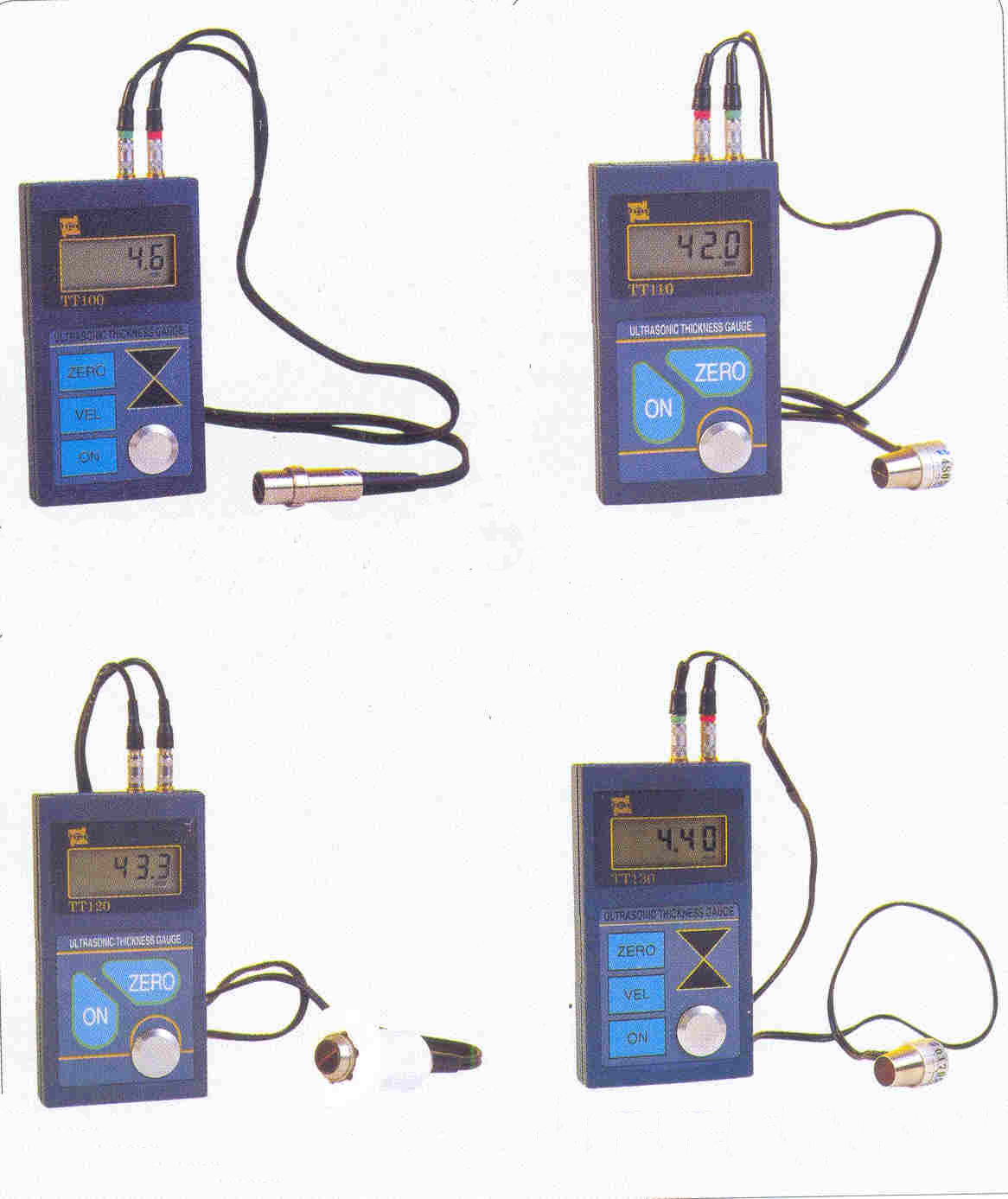

Ultrasonic Thickness Gauge TT100/110/120/130
Features:
Portable size and easy operation
Suitable for any metallic and non-metallic materials ultrasonic can go through
Self-compensating of nonlinearity function is supplied for correction of pickup nonlinearity
10 measuring values recorded
Optional 2.5MHz, 5MHz and 7MHz transducers are available
Clear 4-digit LCD display with backlight
5 pre-set sound velocities for repeating applications
mm / inch selectable
TT100 and TT130 are suitable for thickness testing of various materials with sound speed range 1000-9999m/s
TT110 and TT120 are easy-operation models with only two keys suitable for thickness testing of steels
TT120: high-temperature model with range up 300°C
Technical Specification:-
TT100 | TT110 | TT120 | TT130 | |||
Measuring range | 0.7 - 300.00mm (steel) | |||||
Measuring range for steel pipes | Ø 20 × 3.0mm | |||||
Diameter of transducer | Ø10 (standard) Ø6 (optional) Ø12 (optional) | |||||
Display resolution | 0.1mm | 0.01mm | ||||
Calibration | 4.0mm steel base plate integrated | |||||
Tolerance | ± (1% H + 0.1)mm (H means the thickness of tested piece) | |||||
Measuring units | mm / inch | |||||
Sound velocity range | 1000-9999m/s | 5900 m/s | 1000-9999 m/s | |||
Display | 4-Digital LCD with backlight | 4-Digital LCD | ||||
Surface temperature | -10°C to +60°C | -10° to + 300°C | -10°C to + 60°C | |||
Battery indicator | Low battery voltage indication | |||||
Power supply | 2 Pcs. AA batteries 1.5V | |||||
Working time | 250 hours | |||||
Dimensions | 126mm × 68mm × 23mm | |||||
Weight | Approx. 250g including batteries |
Standard Delivery
Main unit 1
5 MHz transducer 1
5MHz/90° transducer 1
ZW5P high temperature transducer for TT120 1
Integrated steel calibration plate 4.0mm 1
Battery AAA 1.5V 2
Couplant 1
TIME certificate 1
Instruction manual 1
Warranty card 1
Optional Accessory
Optional transducers (see page 29)
