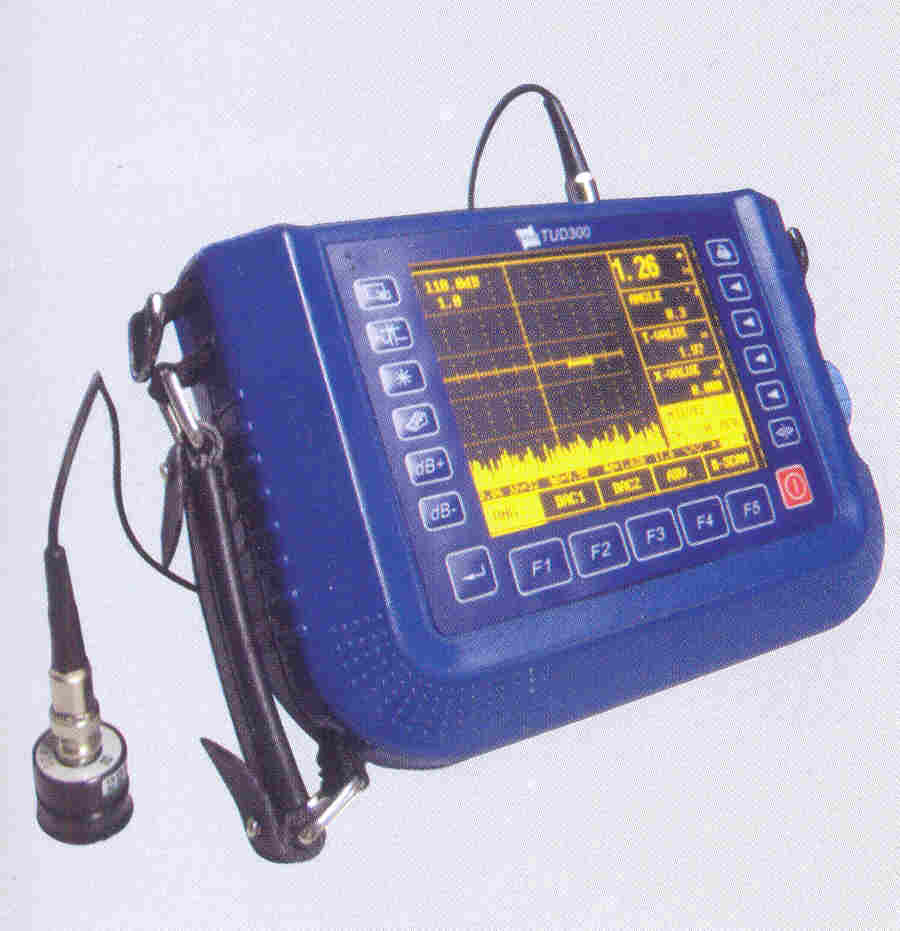

Ultrasonic Flaw Detector TUD300
Features:
Measuring of pitch interval and analyze of echo times
Auto-calibration of probe and auto-gain
Two measuring unit: mm / inch
All built-in software can be up-graded on PC
Lock / unlock the system parameters
Equipped with gate setting and alarming function
Two measurement displaying mode: A-scan and B-scan
Freeze / defreeze waveform and detection parameters
Communicating with PC by RS232 part for transferring the measuring data and system parameter
10 detecting channels are available with separated detecting parameters and DAC curve in every channel
Automatic generation of DAC curve, and 30 points can be recorded at most, adjustable offset curves and gain correction functions are available
Provided with linear reject function, the highest range is 80% of the screen height
Memory up to 300 A scanned images, parameters and DAC. and 30000 thickness values
Four Rectify Ways: positive half-wave, negative half-wave, full-wave and radio frequency
Three detecting modes: single-probe, dual-probe ones and transmission
Technical Specification:-
| Scanning Range | 2.5mm ~ 5000mm |
| Scanning Resolution | 0.1mm (2.5mm ~ 100mm) 1mm (100mm ~ 5000mm) |
| Gain Range | 0dB ~ 110 dB |
| D-Delay | -20µs ~ + 34µs |
| P-Delay | 0µs ~ 99.99µs, resolution 0.01µs |
| Sound speed | 1000 m/s ~ 9999 m/s |
| Bandwidth | 0.2MHz ~ 15MHz (Low0.2 ~ 1, Mid.0.5 ~ 4, High 3 ~ 15) |
| Vertical linearity error | ≤ 3% |
| Horizontal linearity error | ≤ 0.2% |
| Dynamic range | ≥ 32dB |
| Rectification | Positive half wave, negative wave, full wave, and RF |
| Sensitivity leavings | ≥ 60dB |
| Test mode | Pulse-echo, dual and through transmission |
| Pulser | Spike excitation pulser |
| Damping | 50ohms, 150ohms and 400ohms |
| Reject | Linear, 0-80% of full screen, variable in steps of 1% |
| Unit | mm / inch |
| Interface | RS232 |
| Printer | TP UP-NH-S line thermal printer |
| AC requirements | 85-264V AC/1.0A, 47-63Hz |
| Temperature | -10° C ~ 40° C |
| Humidity | 20% ~ 90%RH |
| Power supply | Li battery 4 × 3.6V 400mAh |
| Charging time | 4 ~ 5 hours |
| Weight | 1.47 Kg |
| Overall | 243mm × 173mm × 70mm |
Standard Delivery
Main unit 1
Power adaptor 1
Neck strap 1
Cable for probe 2
Carrying case 1
Instruction manual 1
Straight probe 1
Angle probe 1
Couplant 1
TIME certificate 1
Warranty card 1
Instruction manual 1
Optional Accessory
Connecting cable
Dataview software for TUD300
Printer TP UP-NH
Various probes (see page 35)
