TIME Precision Measuring Instrument

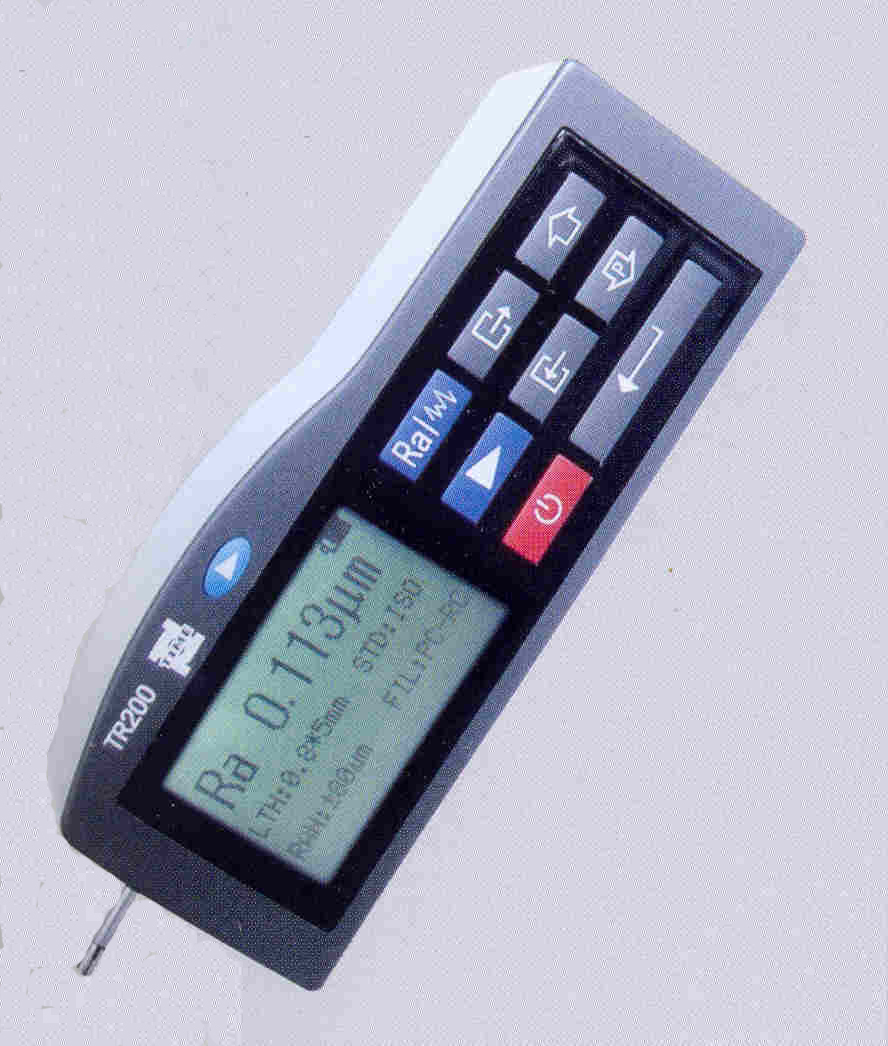

Surface Roughness Tester TR200 / 210 / 220
Features:
Applicable in production site, laboratory and workshop in factory
Easy operation menu and large LCD display with backlight
Li-ion rechargeable battery
Pickup position indicator
Conform to ISO standard, compatible with DIN, ANSI and JIS standard
Advanced software for TR200 and TR220 is available
Lots of delicate optional accessories are supplied making user's of measurement more efficient and easier
Technical Specification:-
| TR200 | TR2100 | TR220 | ||
| Roughness parameter | Ra, Rz, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr. | Ra, Rz, Rq, Ry. | Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr, Rpc, Rk, Rpk, Rvk, Mr1, Mr2. | |
| Assessed profiles | Roughness profile (R) | |||
| Primary profile (P) | Primary profile (P) | |||
| Measuring system | Metric, English | |||
| Display resolution | 0.01µm | |||
| Data output | RS232 | |||
| Measuring Range | ± 20µm, ± 40µm, ± 80µm | |||
| Cutoff length (L) | 0.25mm / 0.8mm / 2.5mm / Auto | |||
| Evaluation length | 1 ~ 5L (selectable) | 5L | 1 ~ 5L (selectable) | |
| Tracing length | (1 ~ 5)L + 2L (selectable) | 5L + 2L | (1 ~ 5)L + 2L (selectable) | |
| Digital filter | RC, PC-RC, Gauss, D-P | |||
| Max. tracing length | 17.5mm / 0.71 inch | |||
| Min. tracing length | 1.3mm / 0.051 inch | 1.8mm / 0.071 inch | 1.3mm / 0.051 inch | |
| Pick-up | Standard pickup TS100, inductive, Diamond stylus radius 5µm, angle of stylus 90° | |||
| Tolerance | ≤ ± 10% | |||
| Repeapility | < 6% | |||
| Power | Li-ion battery rechargeable | |||
| Dimensions | 141mm × 56mm × 48mm | |||
| Weight | 480g | 440g | ||
Surface Delivery
Main unit 1
TS100 standard pickup 1
Specimen Ra 1
Charger 1
Protection nose 1
Steel support 1
Screwdriver 1
TIME certificate 1
Instruction manual 1
Warranty card 1
Optional Accessories
TS110 pickup for curved surface
TS120 pickup for small holes
TS130 pickup for deep grooves
TS140 right-angled pickup
Measuring platform TA610 / TA620
Leveling table TA630 / TA631
Magnetic stand
Steel adapter (Ø8)
Steel adapter (L-attachment)
Software for TR200 / TR220
Printer TA230 (see page 47)
Download the PDF catalogue for surface roughness tester TR 200 / 210 / 220
