TIME Precision Measuring Instrument

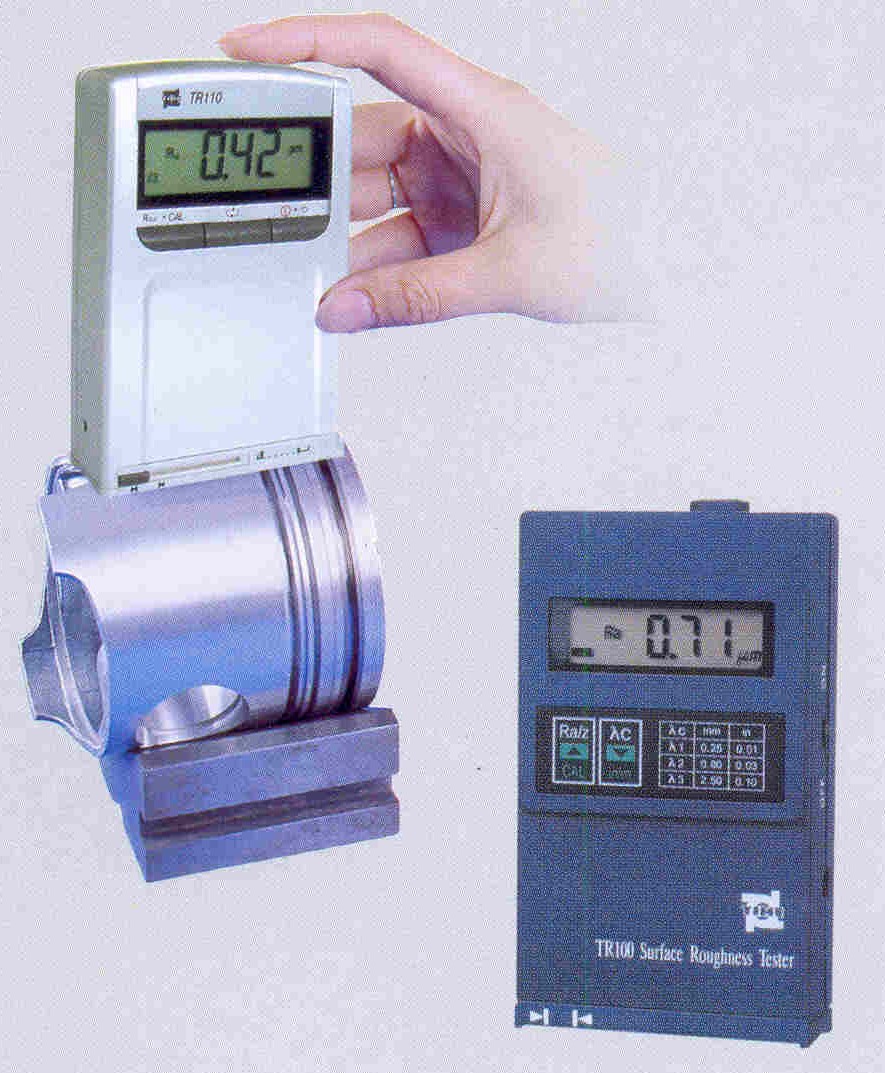

Surface Roughness Tester TR100 / 110
Features:
Pocket size & economical price
Large measuring range suitable for most materials
Measures flat, outer cylindrical and sloping surface
Both Ra and Rz parameters in one instrument
Features external calibration at keyboard
Standard conform to ISO and DIN
Rechargeable batteries, work while charging
TR110 is equipped with Li-ion battery and backlight
Technical Specification:-
| TR100 | TR110 | |
| Roughness Parameter | Ra, Rz | |
| Tracing length | 6 mm | |
| Tracing speed | 1.0mm / sec | |
| Cut-off-lengths | 0.25mm / 0.8mm / 2.5mm | |
| Evaluation length | 1.25mm / 4.0mm / 5.0mm | |
| Measuring range | Ra: 0.05-10.0µm Rz: 0.1 - 50µm | |
| Tolerance | ≤ ± 15% | |
| Repeatability | < 12% | |
| Filter | RC analogue | |
| Pick-up | Piezoelectric | |
| Radius and angle of the stylus point | Diamond, Radius
: 10 ± 2.5µm Angle : 90° (+5° or - 10°) |
|
| Operating temperature | 0 - 40°C | |
| Humidity | < 80% | |
| Storing temperature | -25°C ~ 60°C | |
| Vertilation | Grade 3 | |
| Power supply | 3.6V/2 × NiMH-batteries | 3.6V Li-ion battery |
| Backlight | No | Yes |
| Charger | DC 9V, 8 - 12 hours (recharging time) | DC 6V, 3 hours (recharging time) |
| Dimensions (L × W × H) | 125 × 73 × 26mm | 110 × 70 × 24mm |
| Weight | 200g | 160g |
Surface Delivery
Main unit 1
Protection cover for pickup 1
Specimen Ra 1
Charger 1
TIME certificate 1
Instruction manual 1
Warranty card 1
Optional Accessories
Various Ra specimen with Ra values: 0.1µm, 0.2µm, 0.4µm, 0.8µm, 3.2µm
Download the catalogue for surface roughness tester TR 100 / 110
