TIME Precision Measuring Instrument

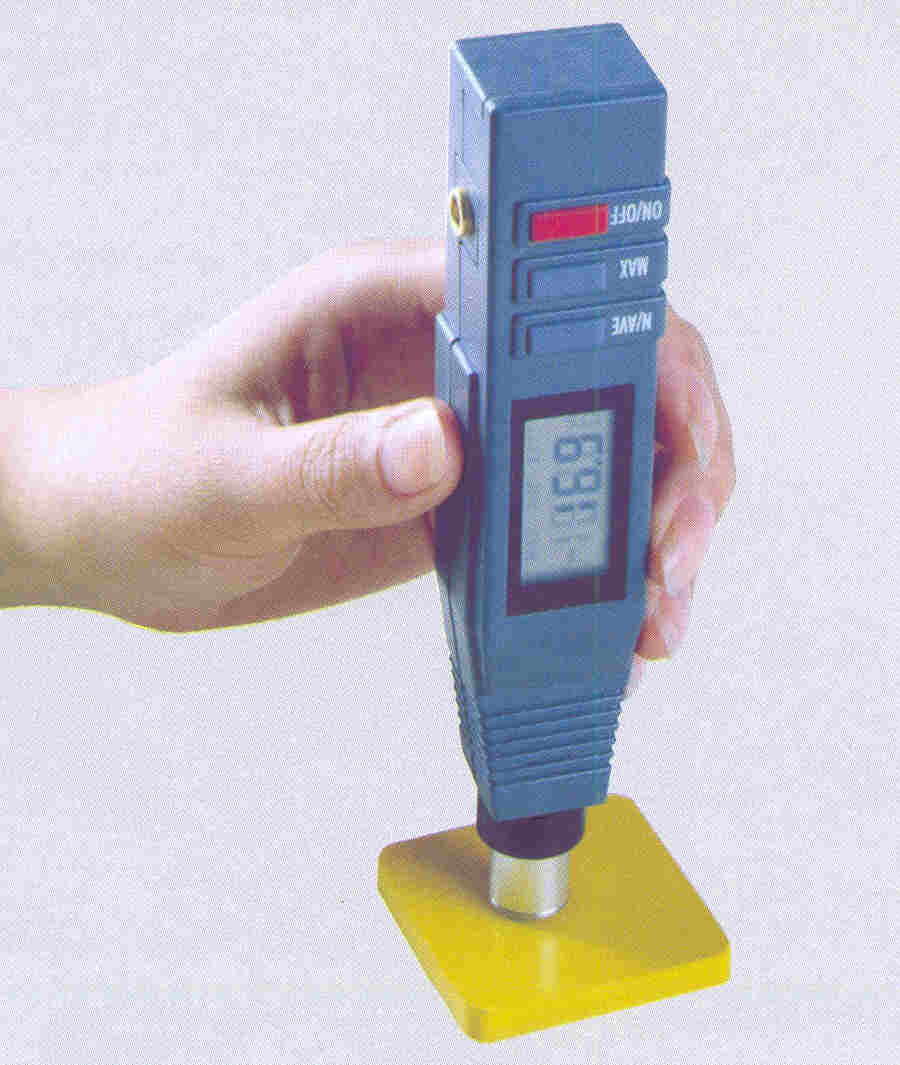

Shore Hardness Tester TH200
Features:
Digital durameter for shore A hardness testing of soft rubber, plastic and such substances
Pocketsize model with integrated probe
Standards: DIN 53505, ASTM D2240, ISO 7619, JIS K7215
RS232 data output
Operation stand available
Bright & clear LCD display
300 hours continuous use with standard batteries
Automatically switch off
Battery low indication and alarm
Technical Specification:-
| Test scale available | Shore A |
| Standards | DIN 53505, ASTM D2240, ISO 7619, JIS K7215 |
| Display | Hardness result, Average value, Max value (Peak value lock), Battery indication |
| Data output | RS232 |
| Measuring range | 0 ~ 100 HA |
| Tolerance | ≤ ± 1 HA (between 20 ~ 90HA) |
| Display resolution | 0.2 HA |
| Operating temperature | 0 ~ 40° C |
| Power supply | 3 × 1.5V (SR44) Button batteries |
| Working time | 300 hours |
| Dimensions | 168mm × 31mm × 30mm |
| Weight | 144g |
Standard Delivery
Main unit 1
Button batteries 1.5V 1
Instruction manual 1
TIME certificate 1
Warranty card 1
Optional Accessory
RS232 connecting cable
Operation stand TH 200FJ
Download the PDF catalogue for shore hardness tester TH200
