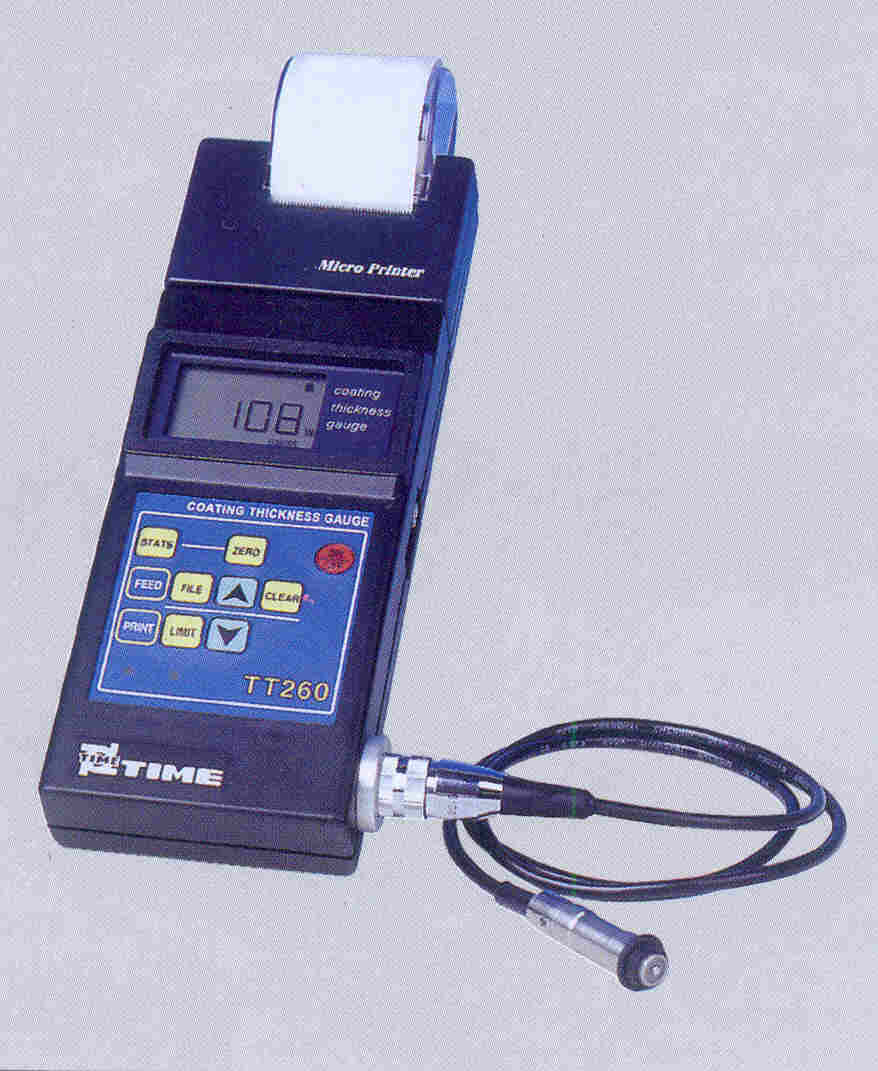

Coating Thickness Gauge TT260
| Coating thickness gauges are essential to check the exact amount of coating done on your product. A less amount of coating means the coating will wear out in the initial use and more coating layers means it will either crack or spread unevenly giving the surface unbalanced look with some part more glossier than other. Coating is done in most cases to provide a anti corrosion for your products. This instrument checks the layers of coatings on ferrous and non ferrous using eddy and magnetic current. F probe means on ferrous and Probe N is for non ferrous applications. Probe F works on magnetic induction principals and is commonly used for checking insulated coating like paint, enamel and non ferrous coating on ferrous objects. Probe N measures insulating coating on non-ferrous by eddy current method. |
Features:
Two measuring methods: magnetic induction (F) and eddy current (N)
6 types of probes are available for various applications
2 measurement modes: continuous / single
5 statistical ways: Mean values / Max. values / Min. values / testing numbers. (NO.) standard deviations (S.Dev)
memory up to 495 readings
Direct testing mode and block statistic values
Dataview for connecting with PC is available
Low battery indication
2 switch off modes: manual and auto
Optional probes and technical specification:-
| Probe model | F400 | F1 | F1/90° | F10 | N1 | CN02 | |
| Operating principle | Magnetic induction | Eddy current | |||||
| Measuring range [µm] | 0-400 | 0-1250 | 0-10000 | 0 to 1250µm 0 to 40µm (for chomeplate on copper) | 10 ~ 200 | ||
| Low range resolution [µm] | 0.1 | 10 | 0.1 | 1 | |||
| Accuracy | One-point calibration[µm] | ± (3%H + 1) | ± (3%H + 10) | ± (3 %H + 1.5) |
± (3%H + 1) | ||
| Two-point calibration[µm] | ± [(1~3)%H+0.7] | ± [(1~3)%H+1] | ± [(1~3)%H+10] | ± [(1~3)%H+1.5] | - | ||
| Measuring condition | Min curvature of the min area (mm) | Convex 1 | 1.5 | Fatten | 10 | 3 | Flatten |
| Diameter of the min area (mm) | Ø3 | Ø7 | Ø40 | Ø5 | Ø7 | ||
| Critical thickness of substrate (mm) | 0.2 | 0.5 | 2 | 0.3 | unlimited | ||
Technical Specification:-
| Operation language | English |
| Standards | DIN, ISO, ASTM, BS |
| Conditions | Zero and foil calibration |
| Statistics | Number of measurements, mean, standard deviation, maximum and minimum of 3000 readings |
| Data memory | 495 readings |
| Limits | Adjustable with alarm |
| Interface | RS-232 |
| Working temperature | 0 - 40°C |
| Power supply | Nicd rechargeable batteries 1.25V |
| Dimensions | 270mm × 86mm × 47mm |
| Weight | 530g |
Standard Delivery
Main unit 1
Probe 1
Charger 1
Calibration foil set 1
Substrate 1
Instruction manual 1
TIME certificate 1
Warranty card 1
Optional Accessory
6 optional probes
PC software Dataview
Calibration foils in different thickness
Connecting cable
