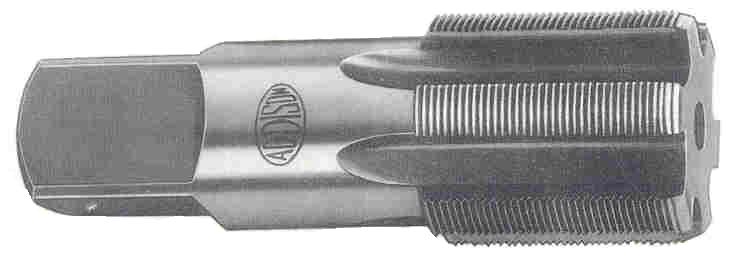

Addison Ground Thread Hand Taps.
|
|
High Speed Steel GROUND THREAD HAND TAPS BSCY Form |
Specifications conform |
|
Dimensions in Inches |
| Nominal Diameter | Threads per Inch | Thread Length | Overall Length |
| 1/4 5/16 3/8 |
26 26 26 |
1 1.1/8 1.1/4 |
2.1/2 2.3/4 2.15/16 |
| 7/16 1/2 9/16 5/8 11/16 |
26 26 26 26 26 |
1.1/4 | 3 |
| 3/4 7/8 1 |
26 24 24 |
1.1/2 | 3.1/4 |
| 1.1/8 1.290 1.370 1.450 |
26 24 24 26 |
1.1/2 | 4 |
| 1.9/16 1.5/8 |
24 24 |
2 | 5 |
