Addison Taper Shank Slot Drills
 |

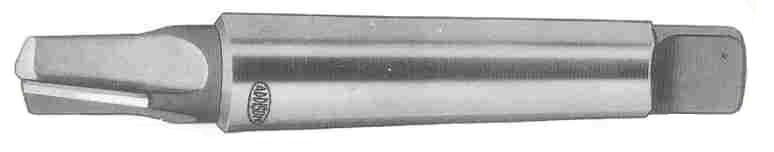

High Speed Steel TAPER SHANK SLOT DRILLS |
Specifications Conform to BS 122 / Part I 1953 |
| Dimensions in Inches |
| Cutting Edge Dia | Cutting Edge Length | No. of Morse Taper Shank Tanged | Overall Length |
| 1/8 5/32 3/16 7/32 1/4 |
3/8 3/8 1/2 1/2 5/8 |
1 1 1 1 1 |
3.3/8 3.3/8 3.1/2 3.1/2 3.5/8 |
| 5/16 3/8 7/16 1/2 9/16 |
3/4 7/8 7/8 1 1.1/8 |
1 1 1 1 2 |
3.3/4 3.7/8 3.7/8 4.3/4 |
| 5/8 11/16 3/4 7/8 1 |
1.1/4 1.3/8 1.1/2 1.5/8 1.3/4 |
2 2 2 2 3 |
4.7/8 5 5.1/8 5.1/4 6.1/8 |
| 1.1/8 1.1/4 1.3/8 1.1/2 |
1.7/8 2 2.1/8 2.1/4 |
3 3 4 4 |
6.1/4 6.3/8 7.5/8 7.3/4 |
