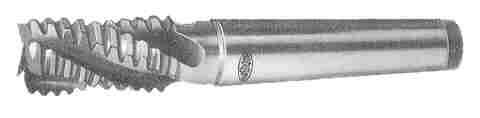

Addison Taper Shank Roughing End Mills
|
|
High Speed Steel TAPER SHANK ROUGHING END MILLS |
Other details conform |
|
Dimensions in mm |
| Cutting Edge Diameter js 14 |
Cutting Edge Length |
Overall Length |
Morse Taper No. |
| 10 12 14 16 18 |
22 26 26 32 32 |
88 92 92 114 114 |
1 1 1 2 2 |
| 20 22 25 28 32 |
38 38 45 45 53 |
120 120 144 144 152 |
2 2 3 3 3 |
| 35 40 45 50 56 |
53 63 63 75 75 |
178 188 188 230 230 |
4 4 4 5 5 |
| 63 | 90 | 245 | 5 |
