Addison Taper Shank End Mills

High Speed Steel

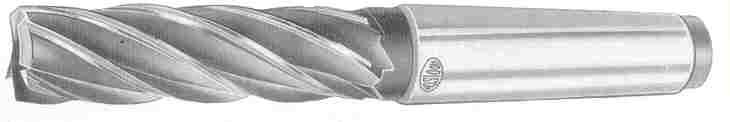

TAPER SHANK END MILLS

Long Series

 Specifications Conform
to IS 6354 - 1971
Dimensions in mm

tapershankendmillslongseries

Cutting Edge Dia  js 14 Cutting Edge Length Overall Length Morse Taper No.
Tanged Shank Tapped Shank Thread Size of Tapped Hole
6
8
10
12
12		 30
38
45
53
53		 104
112
119
127
145		 96
104
111
119
135		 M6
M6
M6
M6
M10		 1
1
1
1
2
14
14
16
18
20
22		 53
53
63
63
75
75		 127
145
155
155
167
167		 119
135
145
145
157
157 		M6
M10
M10
M10
M10
M10		 1
2
2
2
2
2
25
28
32		 90
90
106		 202
202
218		 189
189
205		 M12 3
35
40
45		 106
125
125		 246
265
265		 231
250
250		 M16 4
50
56
63		 150
150
180		 325
325
355		 305
305
335		 M20 5
