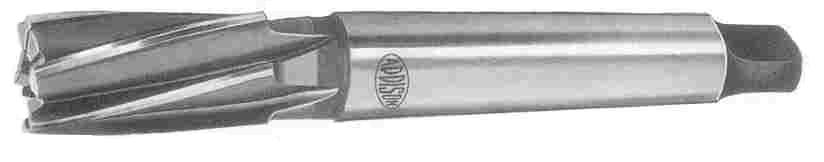

Addison Taper Shank End Mills
 |
High Speed
Steel TAPER SHANK END MILLS |
Specifications Conform
to BS 122 / Part I 1953 |
| Dimensions in Inches |
| Dia. of Cutter | Length of Cutting Edges | Overall Length | Morse Taper No. | ||
| Tanged Shank | Tapped Shank | Thread Size Of Tapped Hole | |||
|
1/8 5/32 3/16 7/32 5/16 3/8 7/16 1/2 |
3/8 3/8 1/2 1/2 5/8 3/4 7/8 7/8 1 |
3.3/8 3.3/8 3.1/2 3.1/2 3.5/8 3.3/4 3.7/8 3.7/8 |
-- | -- | 1 |
| 9/16 5/8 11/16 3/4 13/16 7/8 |
1.1/8 1.1/4 1.3/8 1.1/2 1.5/8 1.5/8 |
4.3/4 4.7/8 5 5.1/8 5.1/4 5.1/4 |
4.3/8 4.1/2 4.5/8 4.3/4 4.7/8 4.7/8 |
3/8 BSW | 2 |
|
1 1.1/8 1.1/4 |
1.3/4 1.7/8 2 |
6.1/8 6.1/4 6.3/8 |
5.5/8 5.3/4 5.7/8 |
1/2 BSW | 3 |
|
1.3/8 1.1/2 1.5/8 1.3/4 1.7/8 2 |
2.1/8 2.1/4 2.3/8 2.1/2 2.5/8 2.3/4 |
7.5/8 7.3/4 7.7/8 8 8.1/8 8.1/4 |
7.1/8 7.1/4 7.3/8 7.1/2 7.5/8 7.3/4 |
5/8 BSW | 4 |
