Addison Taper Shank Twist Drills.

HIGH SPEED STEEL

TAPER SHANK TWIST DRILLS

 Specification Conform

to IS: 5103-1969
Dimensions in mm

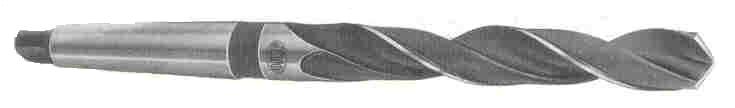

tapershanktwistdrills

General purpose drills having two helical flute and a shank for holding. Right hand cutting drills with normally 118º point angle. We can supply neutral brand drills in conical or split points as per customer's requirements as per DIN 345, BS 328, ISO 235 and as per IS 5103. Morse taper shank drills are used in metal working applications.

Nominal Diameter  h 8

 Range of Diameters Flute Length Overall Length Morse Taper No.
Over Upto & including
3.00 - 3.0 33 114 1
3.20 3.0 3.35 36 117 1
3.50 3.35 3.75 39 120 1
3.80
4.00
4.20		 3.75 4.25 43 124 1
4.50 4.25 4.75 47 128 1
4.80
5.00
5.20		 4.75 5.30 52 133 1
5.50
5.80
6.00		 5.30 6.00 57 138 1
6.20
6.50		 6.00 6.70 63 144 1
6.80
7.00
7.20
7.50		 6.70 7.50 69 150 1
7.80
8.00
8.20
8.50		 7.50 8.50 75 156 1
8.80
9.00
9.20
9.50		 8.50 9.50 81 162 1
9.80
10.00
10.20
10.50		 9.50 10.60 87 168 1
10.80 11.00 11.20 11.50 11.80 10.60 11.80 94 175 1

12.00 12.20 12.50 12.80 13.00 13.20

 11.80 13.20 101 182 1
13.50 13.80 14.00 13.20 14.00 108 189 1
14.25 14.50 14.75 15.00 14.00 15.00 114 212 2
15.25 15.50 15.75 16.00 15.00 16.00 120 218 2
16.25 16.50 16.75 17.00 16.00 17.00 125 223 2
17.25 17.50 17.75 18.00 17.00 18.00 130 228 2
18.25 18.50 18.75 19.00 18.00 19.00 135 233 2
19.25 19.50 19.75 20.00 19.00 20.00 140 238 2
20.25 20.50 20.75 21.00 20.00 21.20 145 243 2
21.25 21.50 21.75 22.00 22.25 21.20 22.40 150 248 2
22.50 22.75 23.00 22.40 23.02 155 253 2
23.25 23.50 23.02 23.60 155 276 3
23.75 24.00 24.25 24.50 24.75 25.00 23.60 25.00 160 281 3

Nominal Diameter  h 8

 Range of Diameters Flute Length Overall Length Morse Taper No.
Over Upto & including
25.25 25.50 25.75 26.00 26.25 26.50 25.00 26.50 165 286 3
26.75 27.00 27.25 27.50 27.75 28.00 26.50 28.00 170 291 3
28.25 28.50 28.75 29.00 29.25 29.50 29.75 30.00 28.00 30.00 175 296 3
30.25 30.50 30.75 31.00 31.25 31.50 30.00 31.50 180 301 3
31.75 31.50 31.75 185 306 3
32.00 32.50 33.00 33.50 31.75 33.50 185 334 4
34.00 34.50 35.00 35.50 33.50 35.50 190 339 4
36.00 36.50 37.00 37.50 35.50 37.50 195 344 4
38.00 38.50 39.00 39.50 40.00 37.50 40.00 200 349 4
40.50 41.00 41.50 42.00 42.50 40.00 42.50 205 354 4
43.00 43.50 44.00 44.50 45.00 42.50 45.00 210 359 4
45.50 46.00 46.50 47.00 47.50 45.00 47.50 215 364 4
48.00 48.50 49.00 49.50 50.00 47.50 50.00 220 369 4
50.50 50.00 50.80 225 375 4
51.00 52.00 53.00 50.80 53.00 225 412 5
54.00 55.00 56.00 53.00 56.00 230 417 5
57.00 58.00 59.00 60.00 56.00 60.00 235 422 5
61.00 62.00 63.00 60.00 63.00 240 427 5
64.00 65.00 66.00 67.00 63.00 67.00 245 432 5
68.00 69.00 70.00 71.00 67.00 71.00 250 437 5
72.00 73.00 74.00 75.00 71.00 75.00 255 442 5
76.00 75.00 76.20 260 447 5
77.00 78.00 79.00 80.00 76.20 80.00 260 514 6
