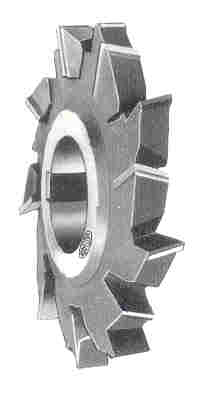

Addison Staggered Tooth Side and Face Cutters

High Speed Steel

STAGGERED TOOTH SIDE & FACE CUTTERS

Specification Conform
to BS 122/Part 1 - 1953
Dimensions in Inches

staggeredtoothside&facecutters

Diameter
+ 0.045"
- 0.000"		 Bore
+ 0.00075"
+ 0.00025"		 Width
+ 0.005"
- 0.000"
3 1 1/4, 5/16, 3/8, 1/2
4 1 1/4, 5/16, 3/8, 1/2, 5/8
5 1.1/4 3/8, 1/2, 5/8
6 1.1/4 3/8, 1/2, 5/8, 3/4
7 1.1/2 1/2, 5/8, 3/4, 7/8
8 1.1/2 5/8, 3/4, 7/8, 1
