Addison Side and Face Cutters

High Speed Steel

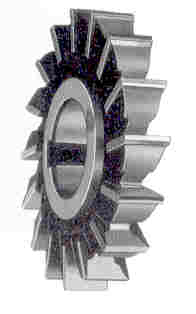

SIDE AND FACE CUTTERS    Type 'B' Straight Teeth

 Specification Conform
to IS 6308 - 1982
Dimensions in mm

sideandfacecutters

Diameter js 16 Width k 11 Bore H 7
50 5, 6, 8, 10 16
63 5, 6, 8, 10, 12, 14, 16 22
80 5, 6, 8, 10, 12, 14, 16, 18, 20 27
100 6, 8, 10, 12, 14, 16, 18, 20, 22, 25 32
125 8, 10, 12, 14, 16, 18, 20, 22, 25, 28 32
160 10, 12, 14, 16, 18, 20, 22, 25, 28, 32 40
200 12,14, 16, 18, 20, 22, 25, 28, 32, 36, 40 40
