Addison Rotary Form Relieved Involute Gear Cutter

High Speed Steel

ROTARY FORM RELIEVED INVOLUTE GEAR CUTTER
14.1/2º or 20º Pressure Angle

 Specifications Conform
to BS 2518 - 1954
Dimensions in mm

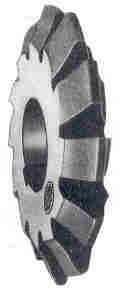

rotaryformrelievedinvolutegearcutters.

MODULE IN MM

 BORE
22 27 32 40 50
DIAMETER
0.5 57
0.75 57
1.0 57
1.25 61
1.5 64
1.75 64
2.00 67 67 73 83
2.25 67 67 73 83
2.5 70 77 86
2.75 70 77 86
3.00   73 83 92
3.25 75 83 92
3.5 77 86 96
3.75 80 86 96
4.00 80 89 99
4.5 86 96 105
5.00 86 96 105
5.5 92 102 111
6.00 96 108 118
6.5 105 111 121
7.00 115 124
8.00 121 130
9.00 133 134 147
10.00 133 140 150
11.00 140 147 158
12.00 140 147 158
14.00 158 178 178
16.00 191
20.00 203
