Addison Double Corner Rounding Cutters



High Speed Steel

DOUBLE CORNER ROUNDING CUTTERS

Specification conform
to BS 122/Part 1 - 1953

Dimensions in Inches

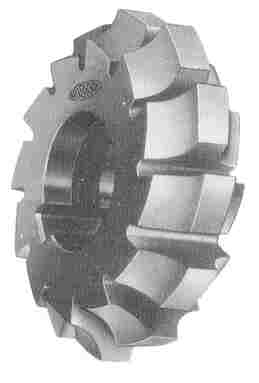

                 doublecornerroundingcutters

Diameter
+  0.045"
-  0.000"

Corner Radius

 Bore
+  0.00075"
+  0.00025"		     Width
+  0.010"
-  0.000"
2.1/4 1/16
3/32
1/8		 1 7/16
2.1/2 5/32
3/16
7/32
1/4		 1 5/8
5/8
3/4
3/4
2.3/4 9/32
5/16		 1 15/16

Diameter
+  0.045"
-  0.000"

Corner Radius

 Bore
+  0.00075"
+  0.00025"		     Width
+  0.010"
-  0.000"
3 11/32
3/8		 1 1.1/16
1.1/16
3.1/4 13/32
7/16		 1 1.3/16
1.3/16
3.1/2 15/32
1/2
9/16
5/8		 1 1.3/8
1.3/8
1.5/8
1.5/8
3.3/4 11/16
3/4		 1 1.7/8
1.7/8
