Addison Double Angle Cutters



High Speed Steel

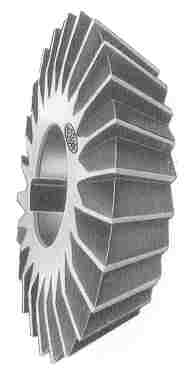

DOUBLE ANGLE CUTTERS

Specification conform
to IS 6325- 1971

Dimensions in mm

doubleanglecutters

Diameter js16 Bore
H7		 Width
js16		 Small Angle
β + 1		 Included Angle
α + 1
50
63		 16
22		 12
18		 12°
15°
15°
15°
15°
15° 		55°
60°
65°
70°
75°
80°
50
63		 16
22		 14
20		 20° 90°
Diameter js16 Bore
H7		 Width
js16		 Small Angle β + 1 Included Angle α + 1
50
63		 16
22

16 22

25°

100°
80 22 32 15°
15°
15° 		65°
70°
75°
100 27 36 15°
15°
15° 		70°
75°
80°
