MEASURING INSTRUMENTS

Starrett Measuring Instruments

 We are authorized to distribute Starrett measuring instruments in India on Stock and Sell basis / Forward delivery basis in Indian rupees.

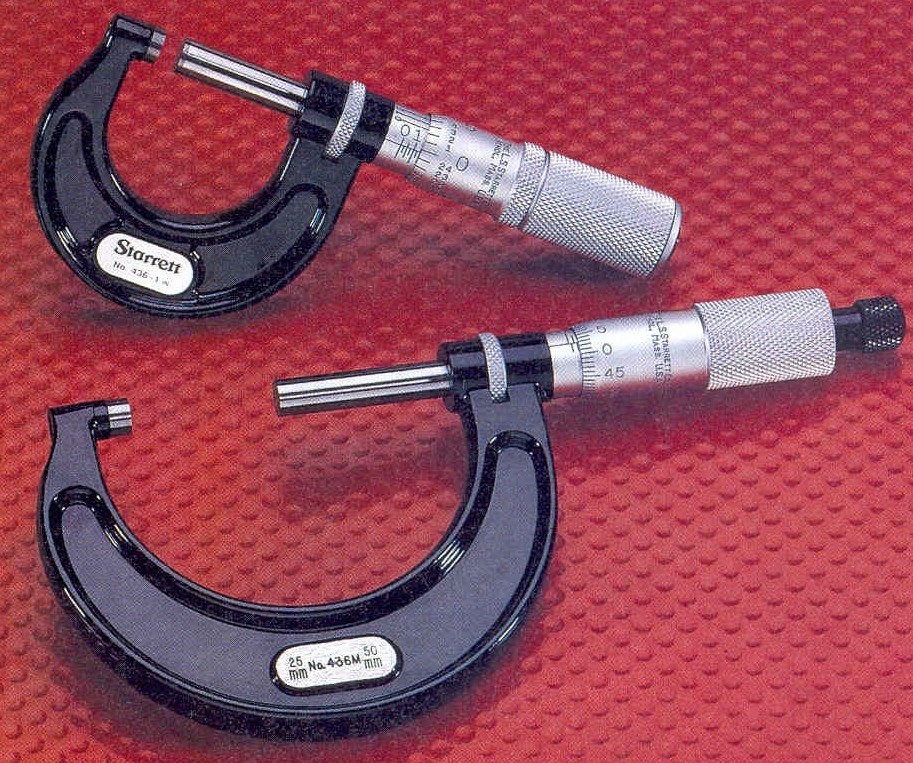

 Outside Micrometers

starrett outside micrometers Micrometer with ratchet stop, carbide tips and Lock nut. L.C. 0.01 mm

Cat. No. Range

436 MXRL - 25

0 - 25 mm

 Full range available in metric and inches. Please ask for prices on ex - stock and forward delivery basis.

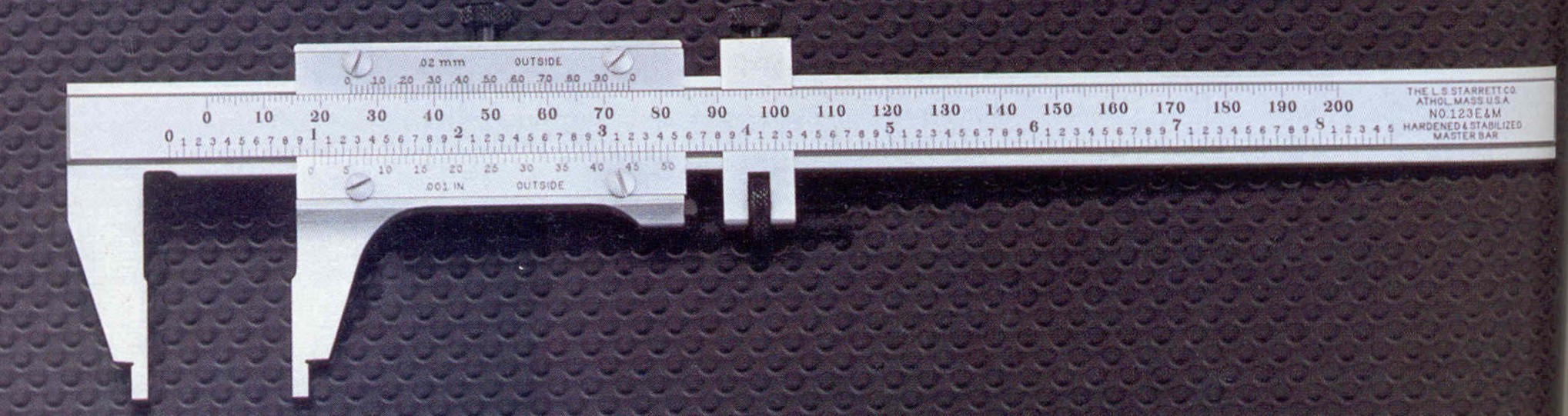

 Vernier Calipers

vernier calipers with out fine adjustments Satin Chrome Finish, Stainless Hardened.

  L.C. 0.02 mm / 0.001", * with fine adjustments. The picture shows caliper with 18" and above measuring capacity. Vernier calipers in 6" / 150 mm to 12" / 300 mm will be four jaws only.



Cat. No. Range
125ME 6/150* 6"/ 150 mm
125MEA-6/150 6"/ 150 mm
125MEa-8/200 8"/ 200 mm
125MEA-12/300 12"/ 300 mm
1251MEA-18/450* 18"/ 450 mm
1251MEA-24/600* 24"/ 600 mm
1251MEA-60/1000* 40"/ 1000 mm



 Dial Caliper

 dial calipers with depth bar

 Yellow Clear / White / Red Dial. Thick sliding rod to support rack movement. With depth bar.

Cat. No. Range L. C.
1201-150 150 mm 0.01 mm
1202-150 150 mm 0.02 mm
1201-200 200 mm 0.01 mm
1202-200 200 mm 0.02 mm
1202-300 300 mm 0.02 mm
1202 - 6 6" 0.001"
1202 - 8 8" 0.001"
1202 - 12 12" 0.001"

 Please note that dial caliper with any of the above colour will be supplied depending on the stock availibilty.



 Digimatic Caliper

Cat. No. Range L.C.
727-6/150 6"/150 mm 0.0005"/0.01
727-8/200 8"/200 mm 0.0005"/0.01
727-12/300 12"/300 0.0005"/0.01

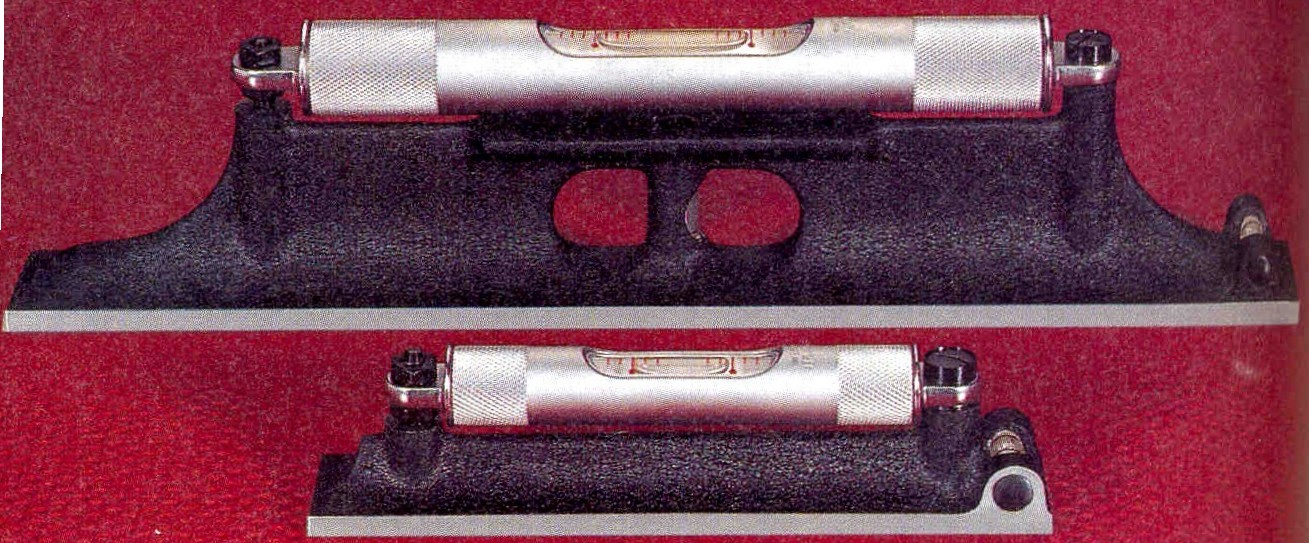

 Precision Machinist Levels



 Ground & Graduated vials. Cross Test vial except 4"

 Involutes groove base for comfortable seating on round objects.

Cat. No. Range L.C.
98 - 4 100 mm/4" 0.4 mm/meter
98 - 6 150 mm/6" 0.4 mm/meter
98 - 8 200 mm/8" 0.4 mm/meter
98 - 12 300 mm/12" 0.4 mm/meter

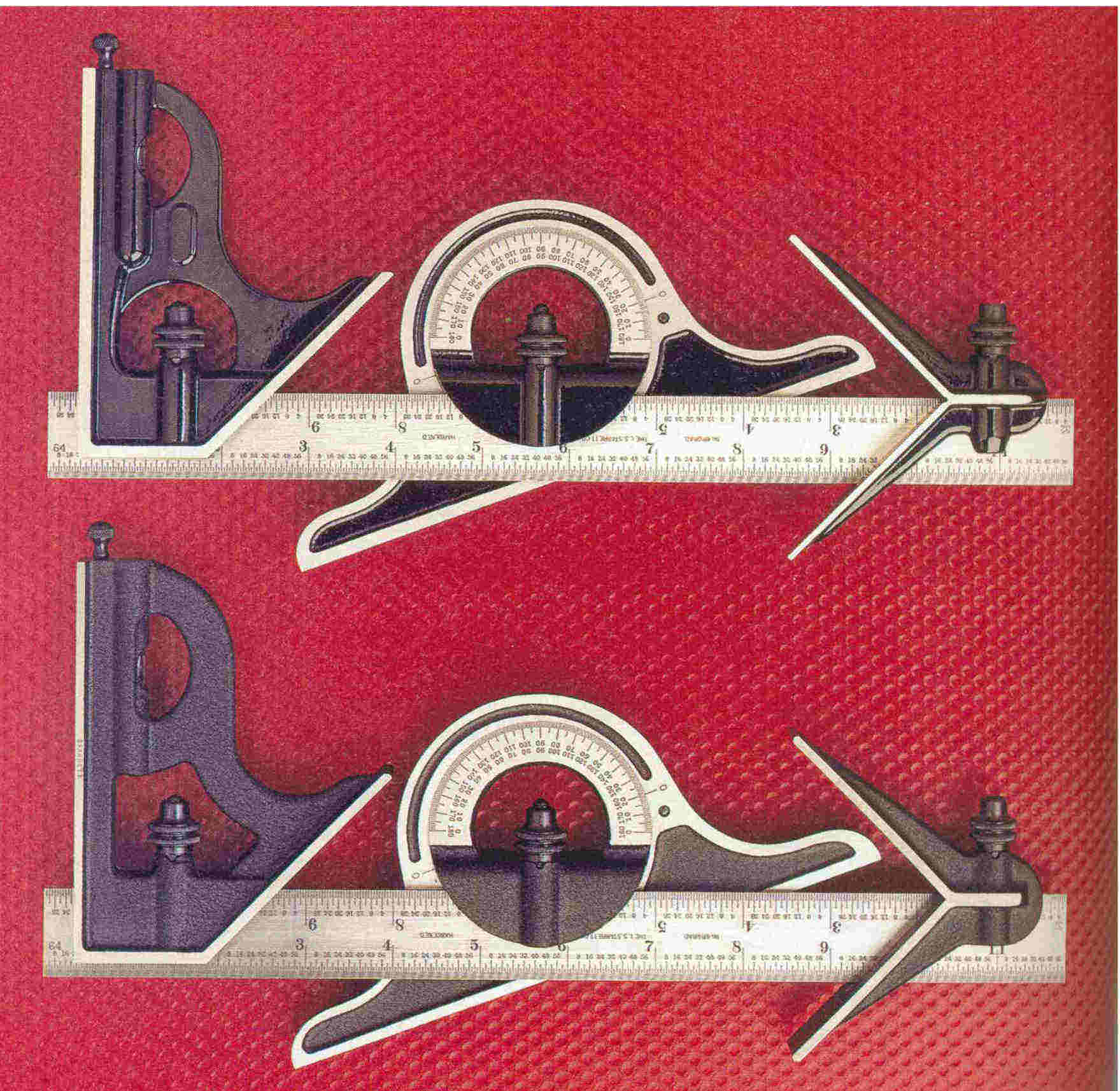

 Combination Sets

combination sets with blade Hardened machine divided blade. Black wrinkle finish.

 Spirit level in square head and protractor.



Cat. No. Range L.C.
9 ME - 300 300 mm / 12" 1/2 mm & 32nd mm, 64th
9 ME - 600 600 mm / 23 1/2" 1/2 mm & 32 mm, 64th

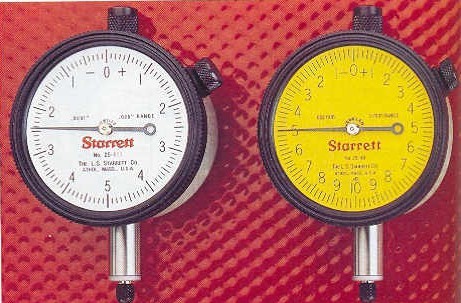

 Dial Gauge Plunger

 starrett plunger dial gauges

 57 mm dial Dia. 8 mm stem, With ruby.

Cat. No. L.C. Range Reading
25E-481 0.01 mm 10 mm 0 - 100
25E-257J 0.001 mm 1 mm 0 - 200

 Dial gauges with extra large measuring range 100 mm, 200 mm and bigger dial diameter available.

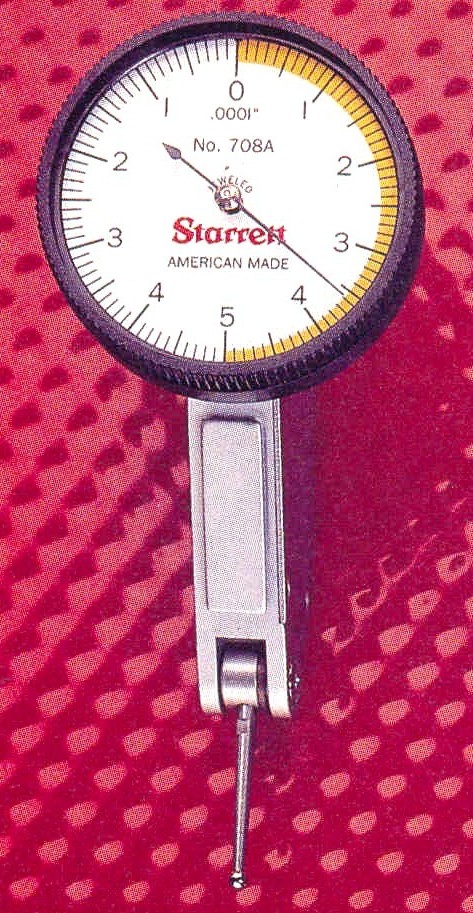

 Dial Test Indicator

 starrett dial test indicators, lever type dial gauges

 38 mm large dial Dia. 4 & 8 mm Stem. 1,2,3 stylus with 0.01 mm Dial.

Cat. No. L.C. Range Reading
709 EMA 0.01 mm

0.8 mm

0-40-0
708 EMA 0.002 mm 0.2 mm 0-100-0

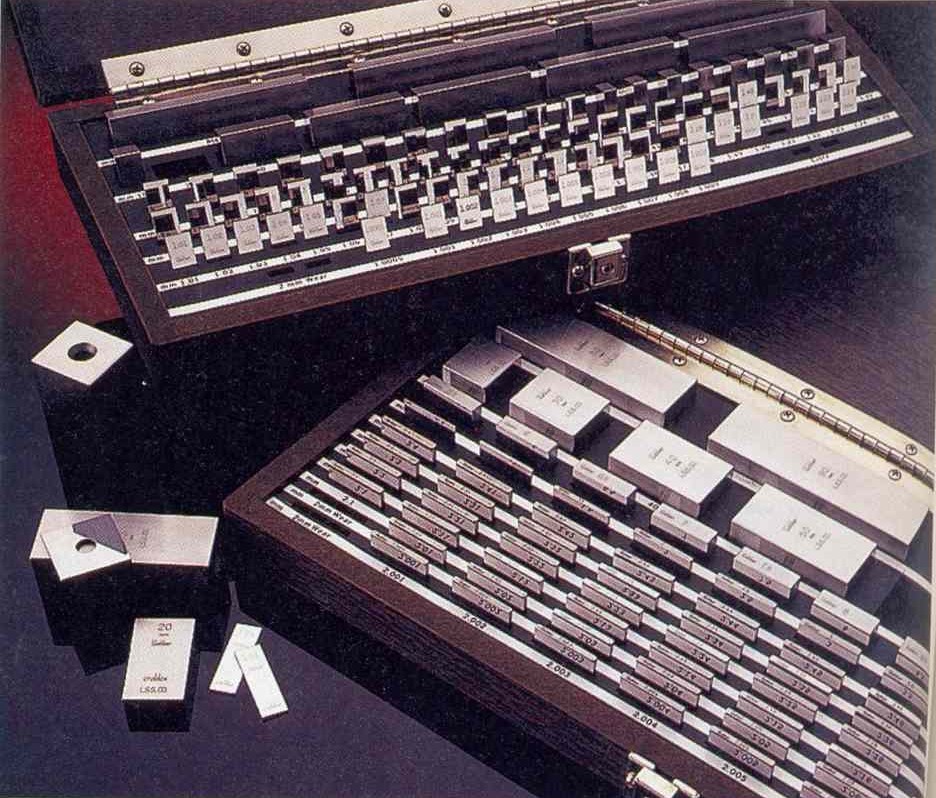

 Slip Gauge Sets

starrett webber slip gauge sets Steel 64 - 65 HRC. UKAS calibration certificate. ISO 3650, Gr II.

Cat. No. Total Blocks
RS 11 M 11 Pcs.
RS 47 M 47 Pcs.
Rs 88 M 88 Pcs.
 Prices for different grades and combination on request. Stock available with 91, 103 and 112 pcs in grade 1 inspection.

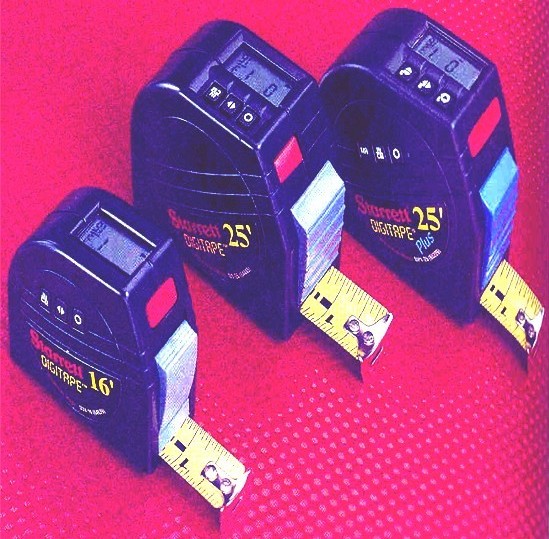

 Digimatic Measuring Tape

 digimatic measuring tapes 5 meters, digital measuring tapes

 Displays Inch, Feet, CM. Inside/Outside Measurement. Zero setting & hold button. Auto off. Measures 1 mm L.C.

Cat. No. Length Blade width
D34-5CME 5 meter / 16' 3/4" - 19 mm
D1 - 8 CME 8 meter / 25' 1" - 25 mm







 Steel Tape

measuring tapes, steel measures * Satin chrome finish. Tough vinyl case. Inch / metric readings. Width 3/8" - 9.5 mm.

Cat. No. Length
CH12-10 DME 3 meter/10'
AY34-5ME9 5 meter / 16'
 * HC-530 15 CME 15 meter / 50'
 * HC-530 30 CME 30 meter / 100'
533-60 CME* 60 meter / 200'

Fiber glass heat resistant tape





 Angle Meter

  Large readable scale for accurate reading. Powerful permanent magnet. Measures any angle or slope.

Cat. No.
AM - 2 (4 x 180)

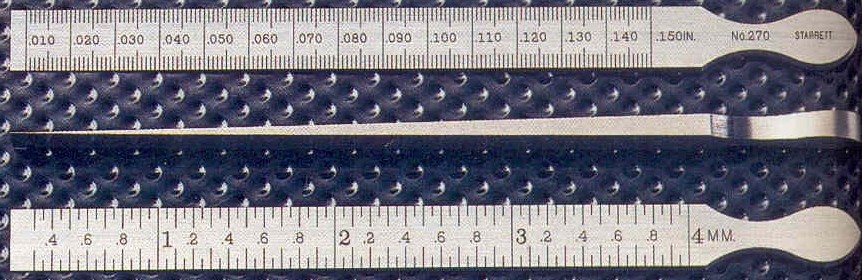

Taper Gauge

 tpaer gauges for die measurements

 269 : For determining hole sizes in dies. Graduation 0.02 mm.

 270 : For bearing work and measuring slot width.

Cat. No. Length Range
269 MA 64 mm 2 - 12 mm
269 MB 70 mm 15 - 25 mm
270 160x11(W)  0.010-0.150"/0.3-4 mm

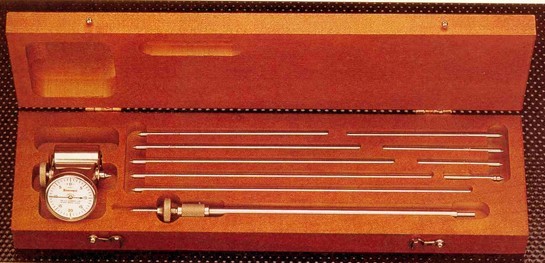

 Crankshaft Distortion Dial / Strain Gauge

crankshaft deflection gauges, web checking gauges An ideal gage for checking bearing alignment or shaft distortion with out dismantling the engine. Also useful as strain gauge on engine frames. This inside measuring gauge checks distortion of crankshaft webs. Comes with balancing attachments.



Cat. no. Dial Graduation Dial Reading One Revolution Range
696MZ 0.02 mm 0 - 50 - 0 1 mm 61 - 458 mm



 New additions from Starrett global series: Bore gauges with dial, Electronic / Digimatic plunger dial gauges and more. Check with for stock in November 2007. Dealers inquiries welcome.

 Catalogue no. may vary. Authorized distributor in India for Starrett hand held measuring instruments. also ask for Starrett bi-metal hole saws, power hacksaws and band saws.



Also available from Starrett

Ask for your copy of complete catalogue or view Starrett website.

Please see our Discounts and terms page for commercial details.

All images and logo appearing on this web page belongs to Starrett.
