Taper Gages 269 Series.

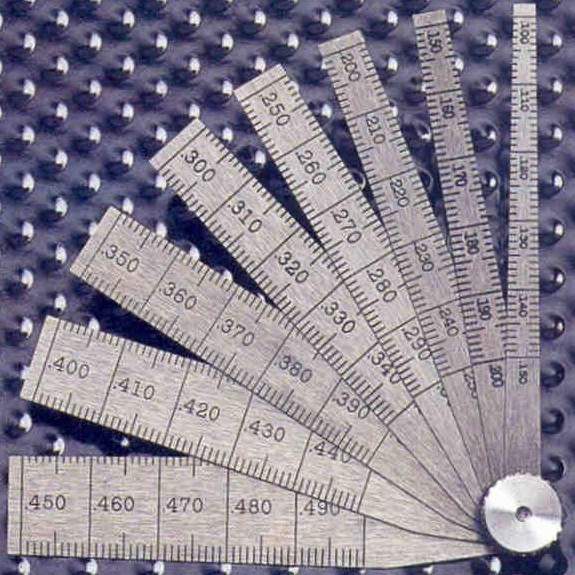

These gages are for delermining hole sizes in dies and all kinds of other work. They read in thousandths of an inch or 0.02 mm. Made of tempered steel, they have a locking device for fixing any leaf in position for use.

                                No. 269 Series

Range Graduation Length No. Leaves Catalog No.
2 - 12 mm 0.02 mm 64 mm 10 269MA
12 - 25 mm 0.02 mm 70 mm 13 269MB

Taper Gauges 270 Series

The Starrett no. 270 Taper Gage is a very useful tool, especially for bearing work and for gaging Slot .The gage is made of quality tool steel 7/16" (11 mm) wide by 6 1/4" (160 mm) long and is accurately tapered throughout its entire length for quick and convenient measuring of slot widths. Although a bit expensive, this tool can and has been used as a precision shim. One side is graduated from .010" to .150" in thousandths of an inch and the reverse side from 0.3 mm to 4 mm one-twentieth of a mm (0.05 mm).

No. 270 Taper Gage: Top View is front side with inch measurement. Middle view shows tapered angle. Bottom view is back side with millimeter measurement.

Range Cat. No.  EDP No.
0.3 - 4 mm  270  51292
