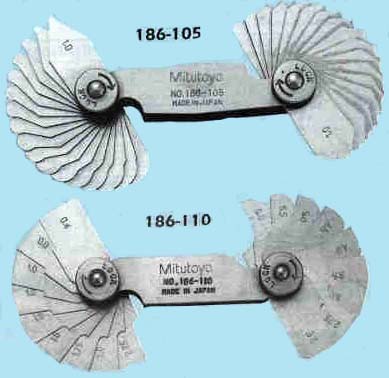

Radius Gages Series 186.
Features:
Radius size is stamped on each gage.
Both concave and convex radius gages become a pair.
With a locking clamp.
Metric:
| Range | Order No. | Composition of gages | Remarks |
| 0.4 - 6 mm (18 pairs) | 186-110 | 0.4, 0.8, 1.2, 1.5, 1.6 mm 1.75 - 3 mm by 0.25 mm, 3.5-6 mm by 0.5 mm | 90° arc |
| 0.5 - 13 mm (26 pairs) | 186-902 | 0.5-13 mm by 0.5 mm | 90° arc |
| 1 - 7 mm (34 pairs) | 186-105 | 1-3 mm by 0.25 mm 3.5-7 mm by 0.5 mm | 180° arc |
| 7.5 - 15 mm (32 pairs) | 186-106 | 7.5-15 mm by 0.5 mm | 180° arc |
| 15.5 - 25 mm (30 pairs) | 186-107 | 15.5-20 mm by 0.5 mm, 21-25 mm by 1 mm | 180° arc |
Inch:
| Range | Order No. | Composition of gages | Remarks |
| 1/32" - 17/64" (16pairs) | 186-103 | 1/32" - 17/64" by 64ths | 90°arc |
| 1/32" - 1/4" (15 pairs) | 186-101 | 1/32" - 1/4" by 64ths | 180°arc |
| 17/64" - 1/2" (16 pairs) | 186-102 | 17/64" - 1/2" by 64ths | 180°arc |
| 9/32" - 33/64" (16 pairs) | 186-104 | 9/32" - 33/64" by 64ths | 90°arc |
| 1/64" - 1/2" (25 leaves) | 186-901* | 1/64" - 17/64" by 64ths, 9/32" - 1/2" by 32nds | - |
* Each gage has five measuring location.
