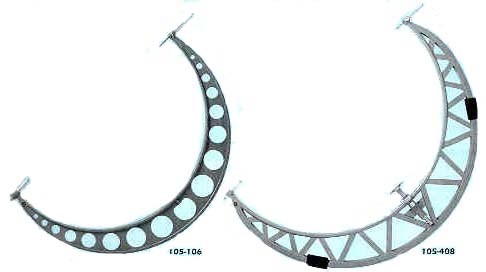

Outside Micrometers Series 105.
With Extension Anvil Collars
Wide measuring range with extension anvil collars.
Carbide-tipped measuring faces.
50 mm (2") spindle stroke.
Supplied with zero-setting standards for each range.
Provided with Ratchet Stop for constant force.
Square and round pipes are combined for light weight and rigid frame (for models over 1000 mm range).
Workpiece stopper (for models over 1000 mm range).
|Range||Order No.||Graduation||Extension collars|
|1000 - 1100 mm||105-408||0.01 mm||50 mm|
|1200 - 1400 mm||105-419||0.01 mm||50 mm, 100 mm|
Mitutoyo Measuring Instruments
Authorized distributors / dealers for "Aku" brand Micrometers, Disk Micrometer in India.
