Back Plunger Type

Back Plunger Type

    Salient Features:

  • Robust brass case and metallic bezel
  • Highly accurate worm mechanism
  • Gauge suitable for difficult inspection locations as gauging plunger is at right angle to the dial.
  • For the American market, inch gauges conform to ASME B89.1.10M-2001

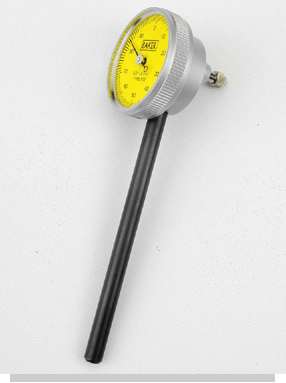

baker back plunger dial gauges
Each gauge carries a calibration certificate giving actual values.
Bezel dia Type Reading Range Graduation
38mm F01 0.01mm 2.0mm 0-50-0
38mm F02 0.01mm 2.0mm 0-100
38mm F51 0.001inch 0.1inch 0-50-0
38mm F52 0.001inch 0.1inch 0-100


All images / logo belongs to Baker Gauges. They appear here for demonstration only.

You can download baker gauges leaflet in PDF format here
